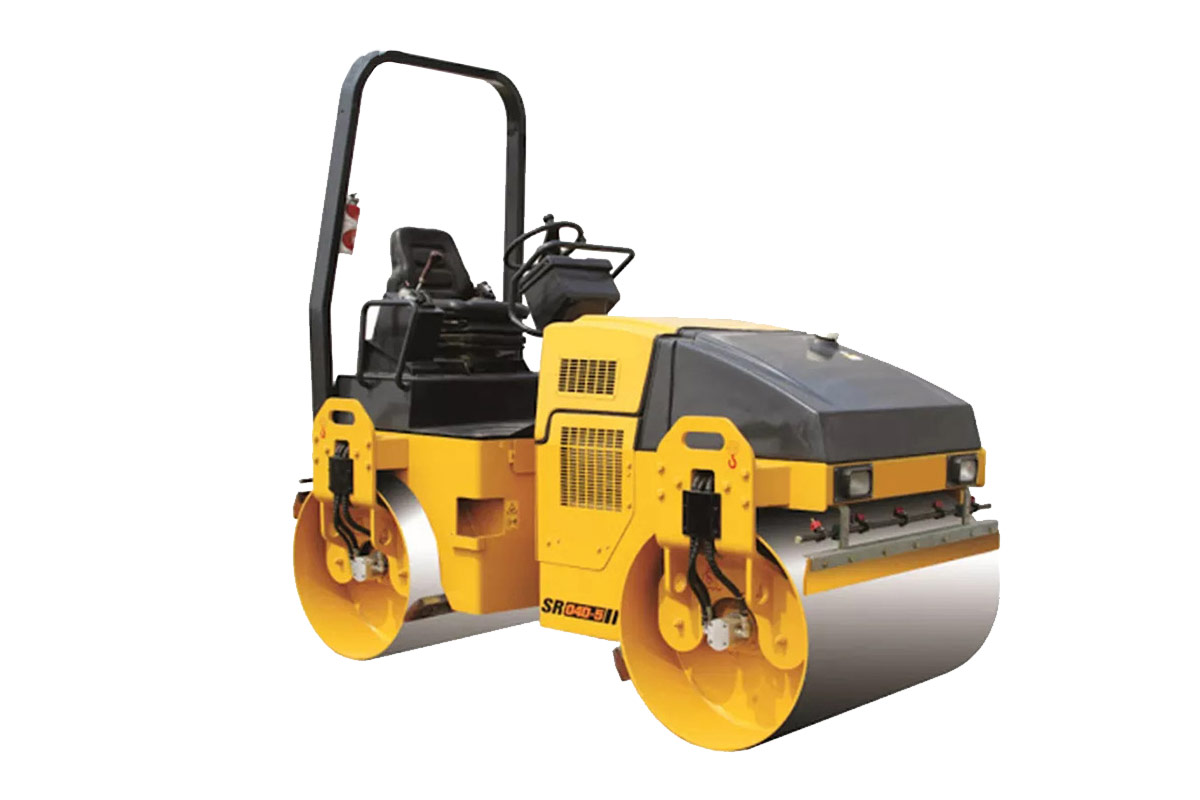

HWD04 Road Roller
Training on Arrival
One-year warranty
Factory Direct
Basic Specifications:
OVERALL WEIGHT: 4200kg
ENGINE POWER: 35kW/3000rpm
COMPACTING WIDTH: 1400mm
Hengwang Group aims to provide you with complete engineering equipment solutions to reduce your costs and increase your profits.
Back
Rich configuration
●Electrically controlled water-spray, highefficient and water- saving
●Emulsified liquid tank
●Wear-resistant scraper can be lift and fixed during transportation
Manipulation
●Forward/reverse and vibrating all controlled by the integrated control lever.
●The engine start is with neutral safty structure realised by the handle
●Integrated micro computer control panel
Hydraulic system
●It's applied with double drive traveling system composed of imported plunger pumps and plunger motors and is equipped with automatic parking brake mechanism.
●The vibrating drum is driven by imported hydraulic parts, with free changeover between single and double vibrating modes.
●The hydraulic articulated steering system features flexible motions and effectively adapts to diversified working conditions.
Engine
●Equipped with imported Yanmar engine, stronger power with less fuel consumption
Parameter name | HWD04 |
Operating weight (Kg) | 4200 |
Exciting force (KN) | 40 |
Vibration frequency (Hz) | 60 |
Nominal amplitude (mm) | 0.5 |
Gradeability (%) | 40 |
Engine model | Yanmar 488 |
Rated power/rated speed (kW/rpm) | 35kw/3000rpm |
Overall dimensions of machine (mm) | 3000*1670*2200 |
Forward speed (km/h) | 0-12 |
Reversing speed (km/h) | 0-12 |
Wheelbase (mm) | 1950 |
Fuel tank (L) | 70 |
Compacting width (mm) | 1400 |
All products are guaranteed for 12 months!
