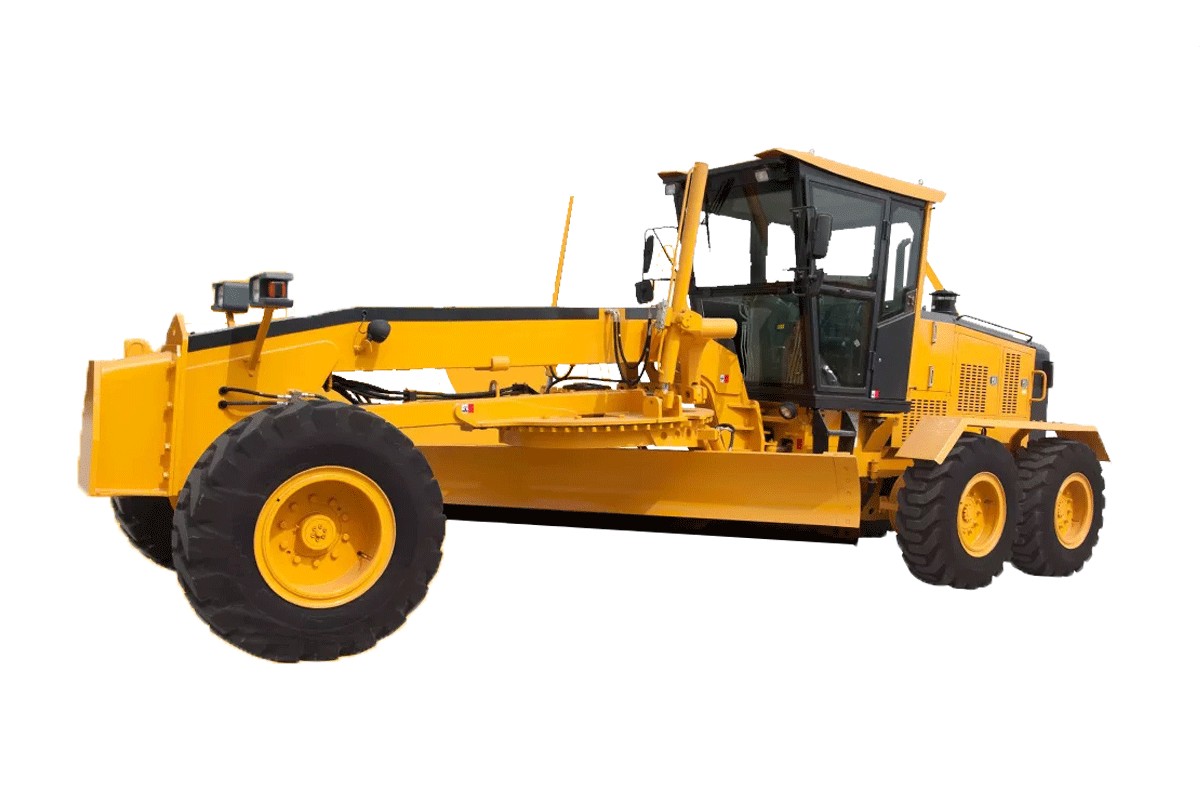

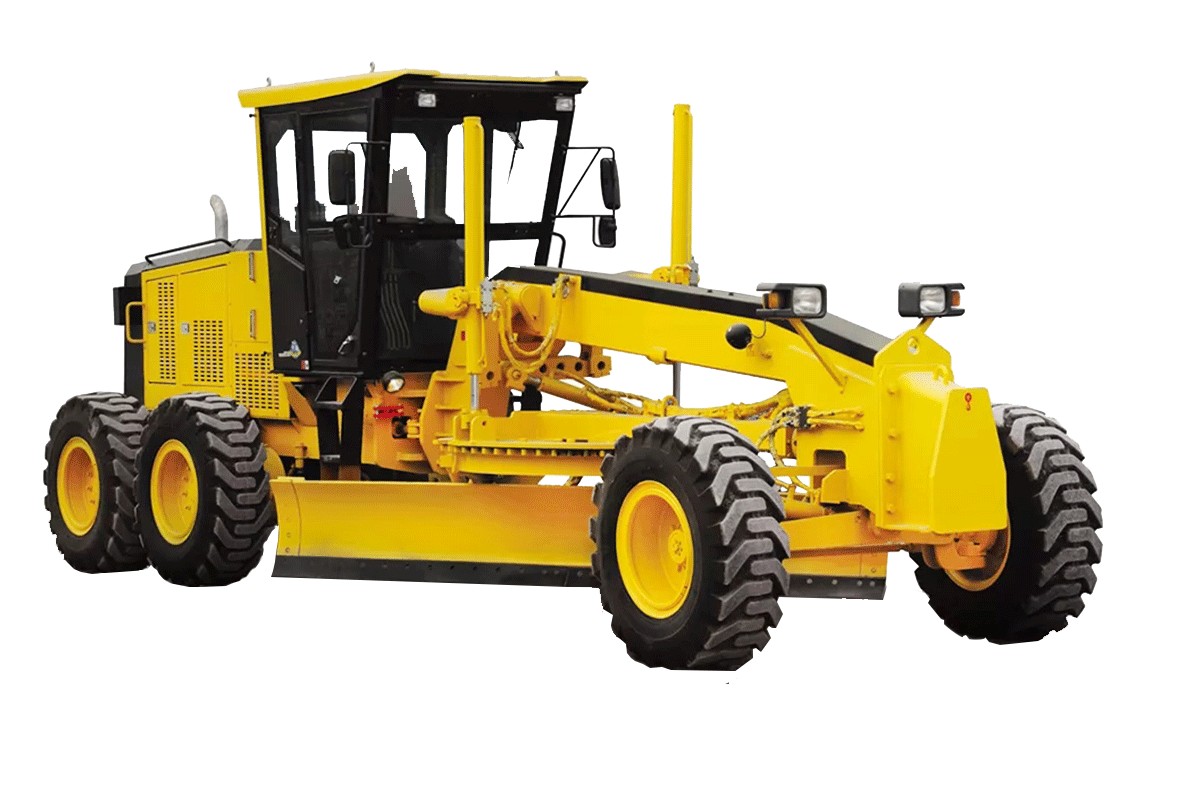

HWSG18-3 Motor Grader

Training on Arrival
One-year warranty
Factory Direct
Basic Specifications:

Operating Weight: 15700kg
Rated Power: 132Kw
Width of Shovel Blade: 3660/3965mm

Hengwang Group aims to provide you with complete engineering equipment solutions to reduce your costs and increase your profits.

Parameter

Product nameSG18-3
Performance parameters
Operating weight of machine (kg)15900
Wheelbase (mm)6260
Wheel tread (mm)2155
Minimum ground clearance (mm)430
Steering angle of front wheels (°)±45
Articulated steering angle (°)±25
Maximum traction force (kN)83.5 (f=0.75)
Turning radius (mm)7,800 (Outer side of front wheel)
Maximum gradeability (°)20
Width of shovel blade (mm)3660/3965
Height of shovel blade (mm)635
Blade slewing angle (º)360
Blade cutting angle (º)37-83
Maximum digging depth of blade (mm)500
Length (mm)9015
Width (mm)2600
Heigh (mm)3400
Engine
Engine model6BTAA5.9-C180
EmissionChina-II
TypeMechanical direct injection
Rated power/rated speed (kw/rpm)132kW/2200rpm
Drive system
Torque converterSingle-stage single-phase three-element
TransmissionCountershaft power shift
GearsSix forward and three reverse

Power System:


● The machine is equipped with a Dongfeng Cummins 6BTAA5.9-C180 diesel engine, which is inline, 4-stroke, direct injection, water-cooled, turbocharged, and intercooled. This engine complies with China-II emission standards and is known for its compact structure, stable performance, and high efficiency and energy-saving capabilities.

● The machine's high torque reserve ensures stable power output even under demanding working conditions, meeting all your operational requirements.
