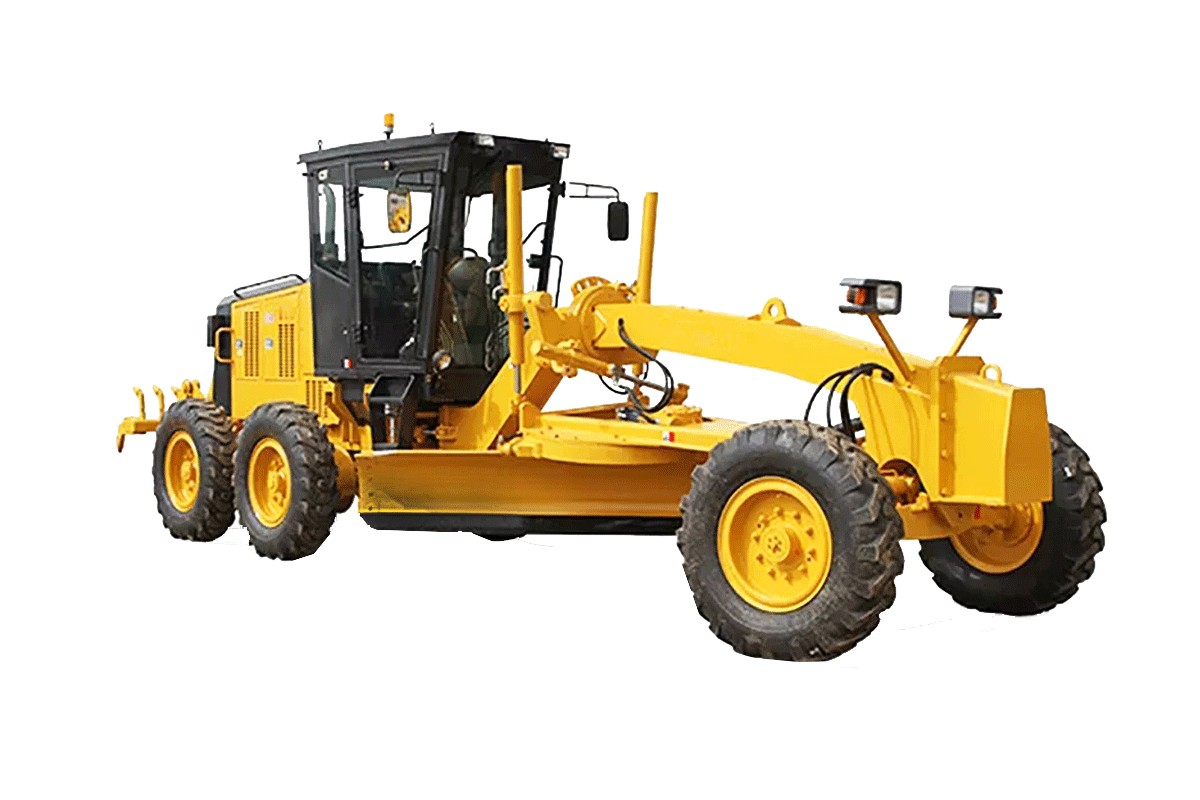

HWSG14 Motor Grader

Training on Arrival
One-year warranty
Factory Direct
Basic Specifications:

Operating Weight: 11600kg
Rated Power: 112Kw
Width of Shovel Blade: 3660mm

Hengwang Group aims to provide you with complete engineering equipment solutions to reduce your costs and increase your profits.

Parameter

Product nameSG14
Performance parameters
Operating weight of machine (kg)11600
Wheelbase (mm)5812
Wheel tread (mm)2050
Minimum ground clearance (mm)430
Steering angle of front wheels (°)±45
Articulated steering angle (°)±25
Maximum traction force (kN)65 (f=0.75)
Turning radius (mm)6600 (Outer side of front wheel)
Maximum gradeability (°)20
Width of shovel blade (mm)3660
Height of shovel blade (mm)615
Blade slewing angle (º)360
Blade cutting angle (º)30-68
Maximum digging depth of blade (mm)500
Length (mm)8036
Width (mm)2380
Heigh (mm)3170
Engine
Engine model6BTAA5.9-C150
EmissionChina-II
TypeMechanical direct injection
Rated power/rated speed (kw/rpm)112kW/2200
Drive system
Torque converterSingle-stage single-phase three-element
TransmissionCountershaft power shift
GearsSix forward and three reverse

Power System


● It is equipped with the Dongfeng Cummins 6BTAA5.9-C150 diesel engine, which complies with China-II emission standards. This engine is an inline, 4-stroke, direct injection, water-cooled, turbocharged, and intercooled engine. It is renowned for its compact structure, stable performance, and high efficiency and energy-saving capabilities.

● The significant torque reserve ensures consistent power output even in demanding work conditions, meeting all your operational requirements.
