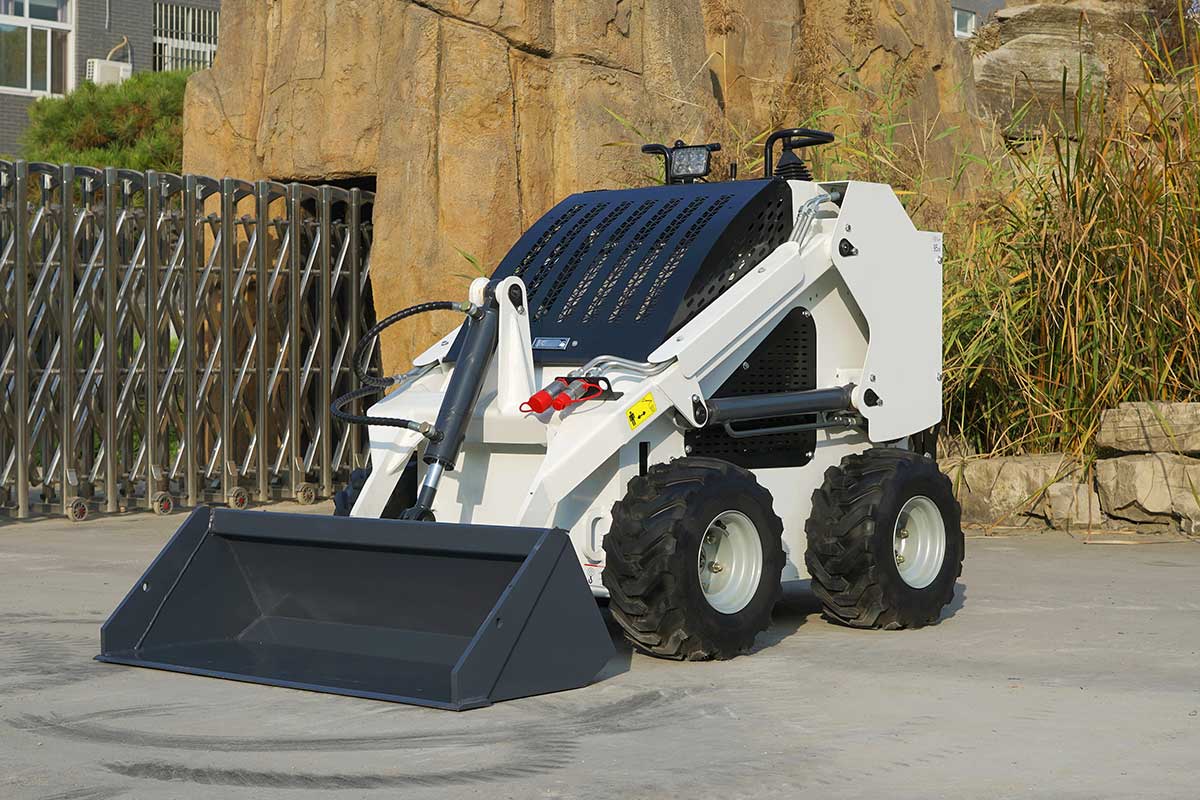

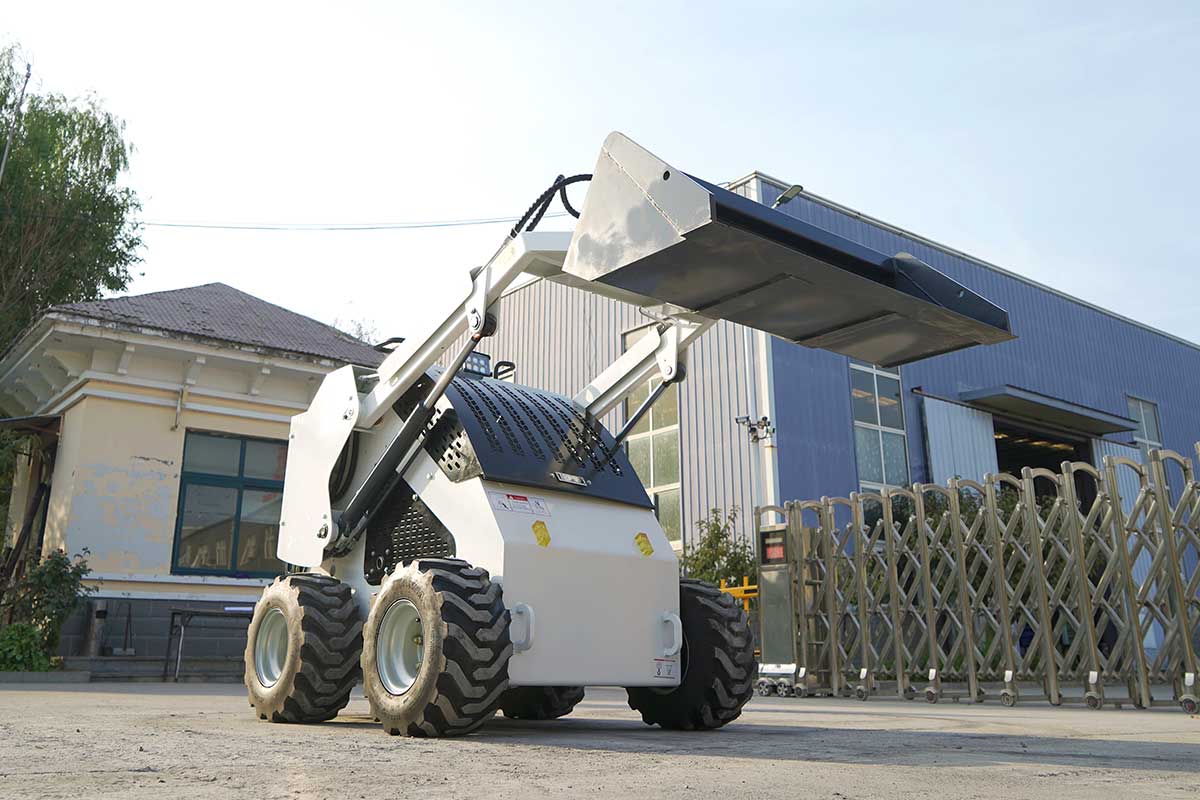

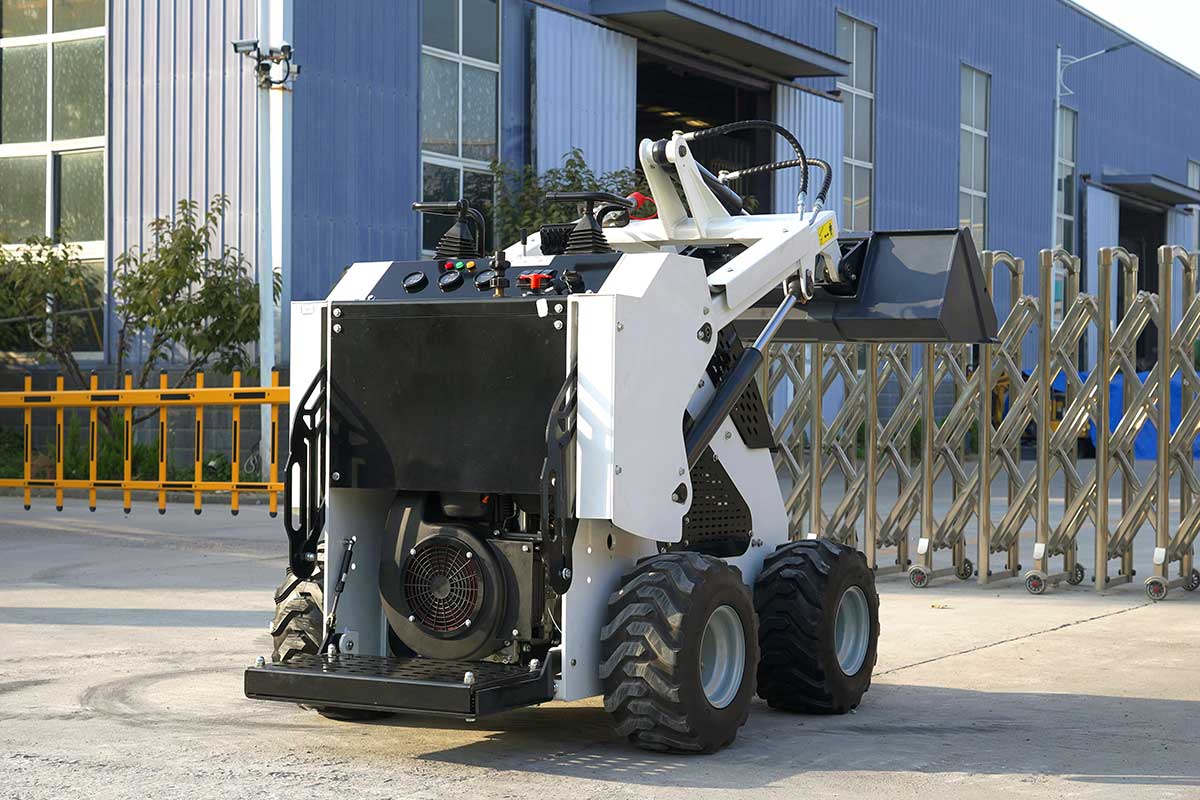

Skid Steer Loader HW-S460
Training on Arrival
One-year warranty
Factory Direct
Basic Specifications:
Operating Load: 300-400Kg
Bucket Capacity: 0.12cbm
Rated Power: 15-18kw
Hengwang Group aims to provide you with complete engineering equipment solutions to reduce your costs and increase your profits.
Back| HW-S460 | |||
| Machine Rating | Dimensions | ||
| ITEMS | SPECIFICATIONS | ITEMS | SPECIFICATIONS |
| Engine Brand | LONCIN/RATO/KOOP | Height at Maximum Extension/mm | 2450 |
| Rated Power/KW | 15-18KW | Height To the the bucket pin /mm | 1870 |
| Rated Speed/rpm | 3600 | Vehicle height | 1350 |
| Number of cylinders | 2 | Maximum Height as Lay the bucket flat/mm | 1810 |
| Air intake way | Naturally Aspirated | Total length without appendages/mm | 1680 |
| Displacement/cc | 639 | Length With standard bucket /mm | 2206 |
| Emissions Standards | EUR 5 | Maximum height unloading Angle | 34 |
| Rated Operating Capacity/Kg | 300 | Dumping Height/mm | 1510 |
| Maximum Operating Capacity/Kg | 400 | Discharge Distance/mm | 450 |
| Maximum Breakout Force/KN | 450 | The flip Angle of the bucket on the ground | 27 |
| Bucket Capacity/m3 | 0.12 | Bucket flip Angle at highest Pos. | 114 |
| Driving Speed/ km/h | 0-6 | Wheel Base/mm | 850 |
| Total Cycling Time/s | 9 | Ground Clearance/mm | 150 |
| System Operating Pressure /bar | 17-21 | Tail Length/mm | 280 |
| Fuel Tank Capcity/L | 10 | Wheel base (standard tire) /mm | 720 |
| Operating Weight/Kg | 1200 | Vehicle width (standard tire) /mm | 1100 |
| Tyre Size | 18*72 | Bucket width/mm | 1000 |
All products are guaranteed for 12 months!
