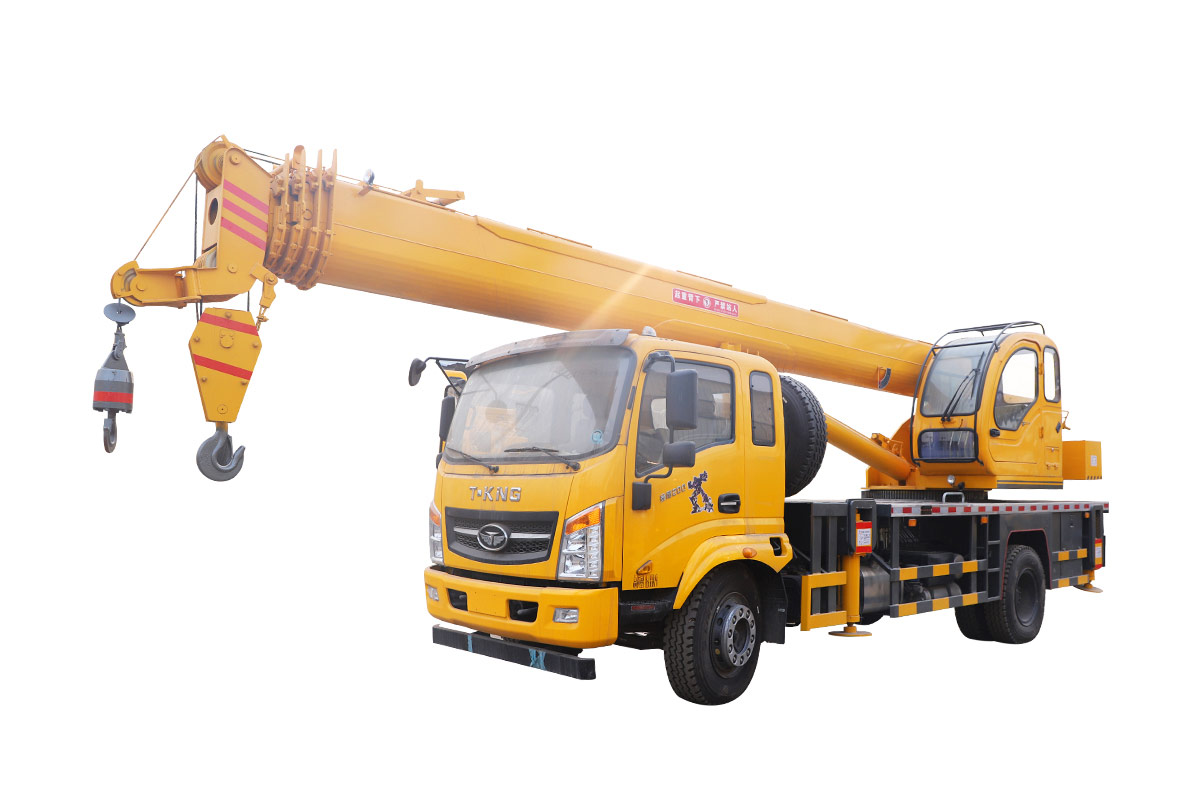

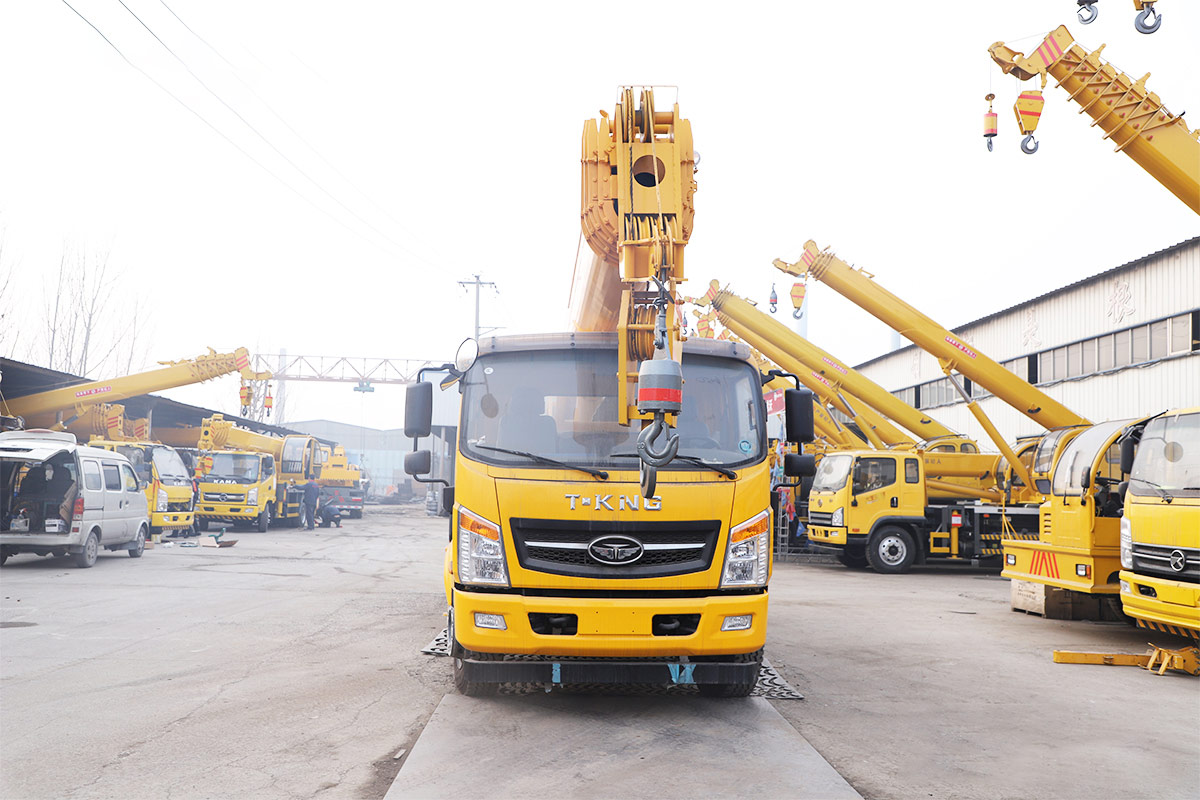

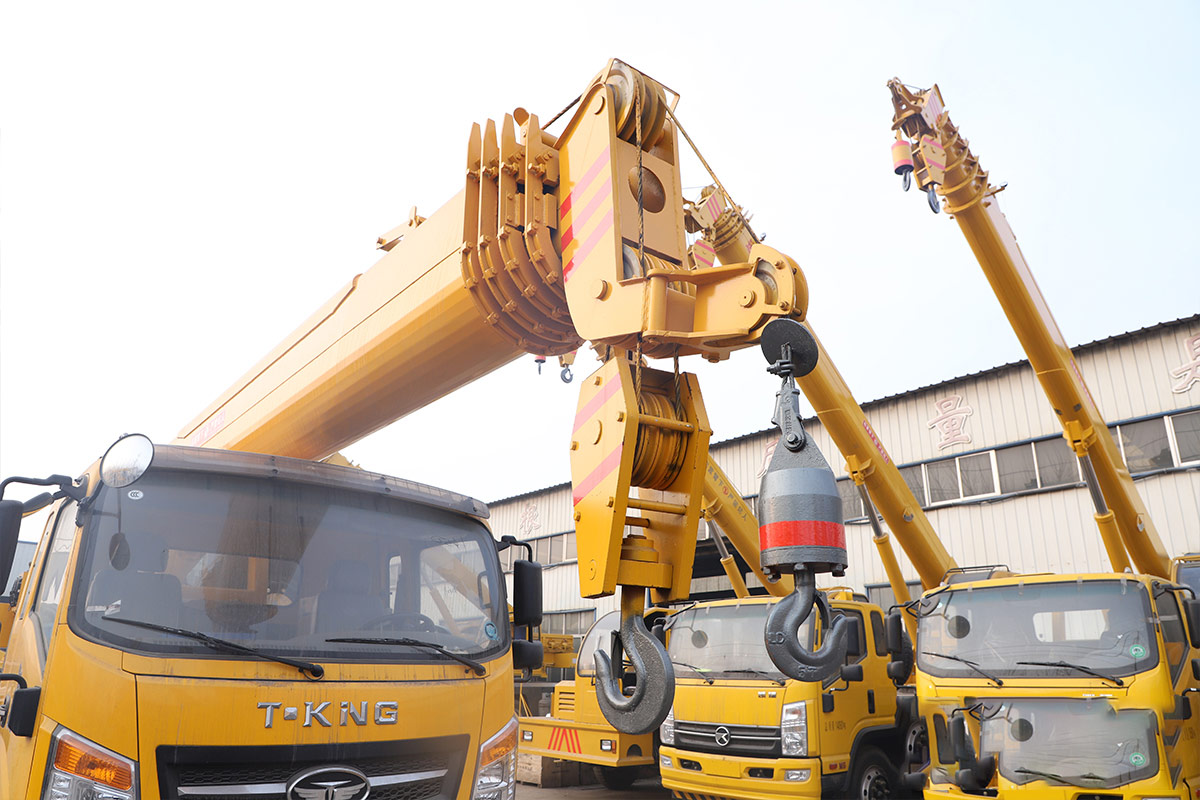

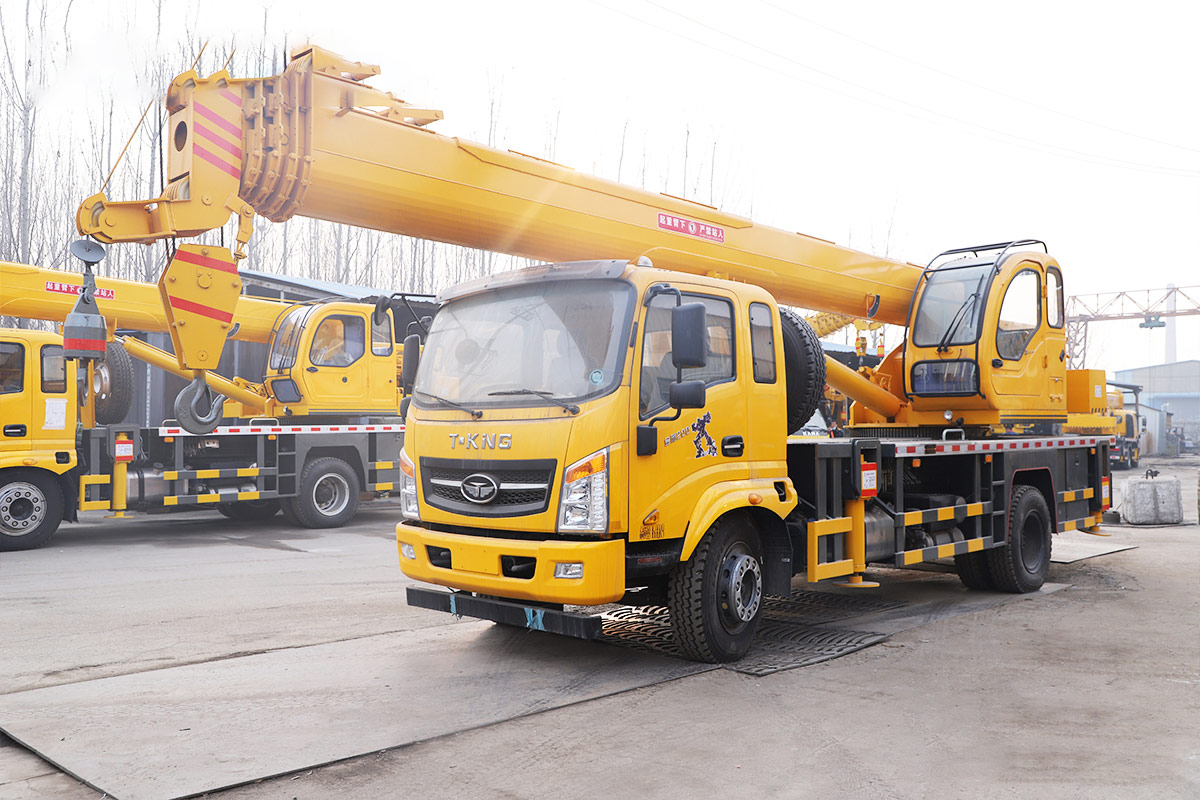

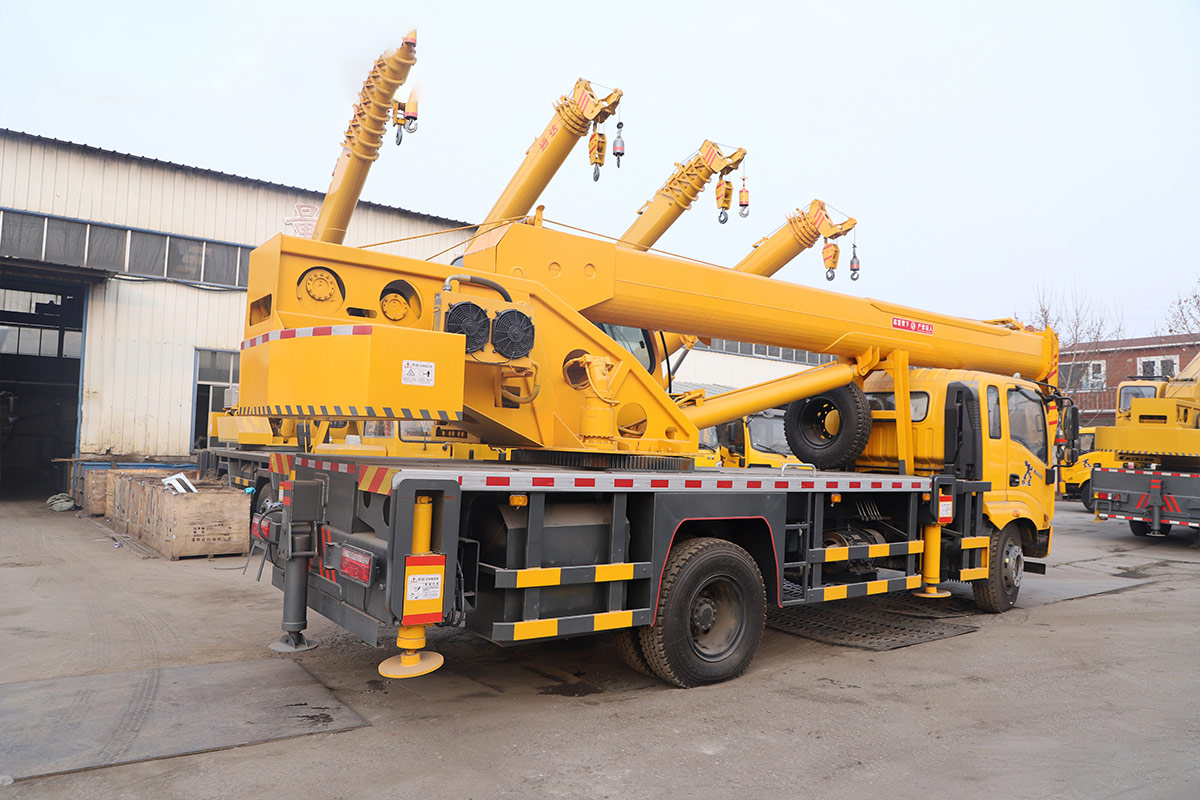

HWTJ16T Truck Crane

Training on Arrival
One-year warranty
Factory Direct
Basic Specifications:

Swing speed: 0-3rap
Engine model: YCS0400-48
Power: 147kw200hp

Hengwang Group aims to provide you with complete engineering equipment solutions to reduce your costs and increase your profits.

1. The slewing center is equipped with a touch-type electric disc, which can rotate 360 degrees infinitely.

2. Boom telescopic limit marking and automatic stop report, limit switch three insurance.

3. Hydraulic double-section outriggers, extra-large outrigger span, larger working range and safer. The outrigger cylinder is ejected with small clearance.

4. U-shaped section of the arm body, anti-twist design, more uniform force, better telescopic guidance, more stable telescopic.

ModelHWTJ16T
Chassis modelsTANGJUN4500
Max. loading capacity16000kg
Crane jib U type8m*5 section (rope inside)
Max. lifting height36.6m
Outrigger span (mm)6500*5400
Overall Dimensions11030*2500*3440
Motor Power15kw
Lifting speedThree pumps combined
Swing speed0-3rap
Engine modelYCS0400-48
Power147kw200hp
Tire10.00-R20
Reducer modelPlunger planetary reducer
Steering machanismHydraulic Power Steering
Braking SystemAir brake
GearboxFaust 8-speed gearbox
Weight18000kg
CabXCMG Cab
Emission StandardsChina Ⅵ
Wheelbase4500
Main hoisting mechanism16t Inclined shaft winch
Auxiliary hoisting mechanism12t Inclined shaft winch
Driving speed85km/h
