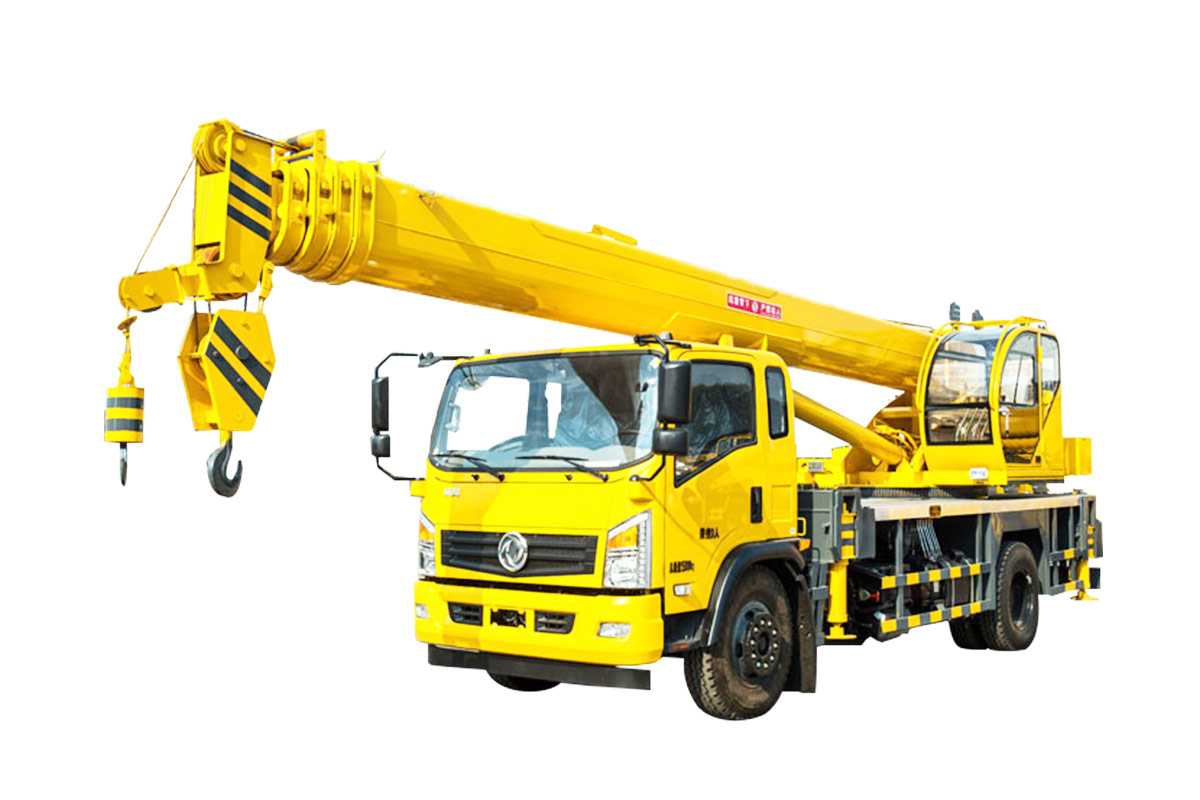

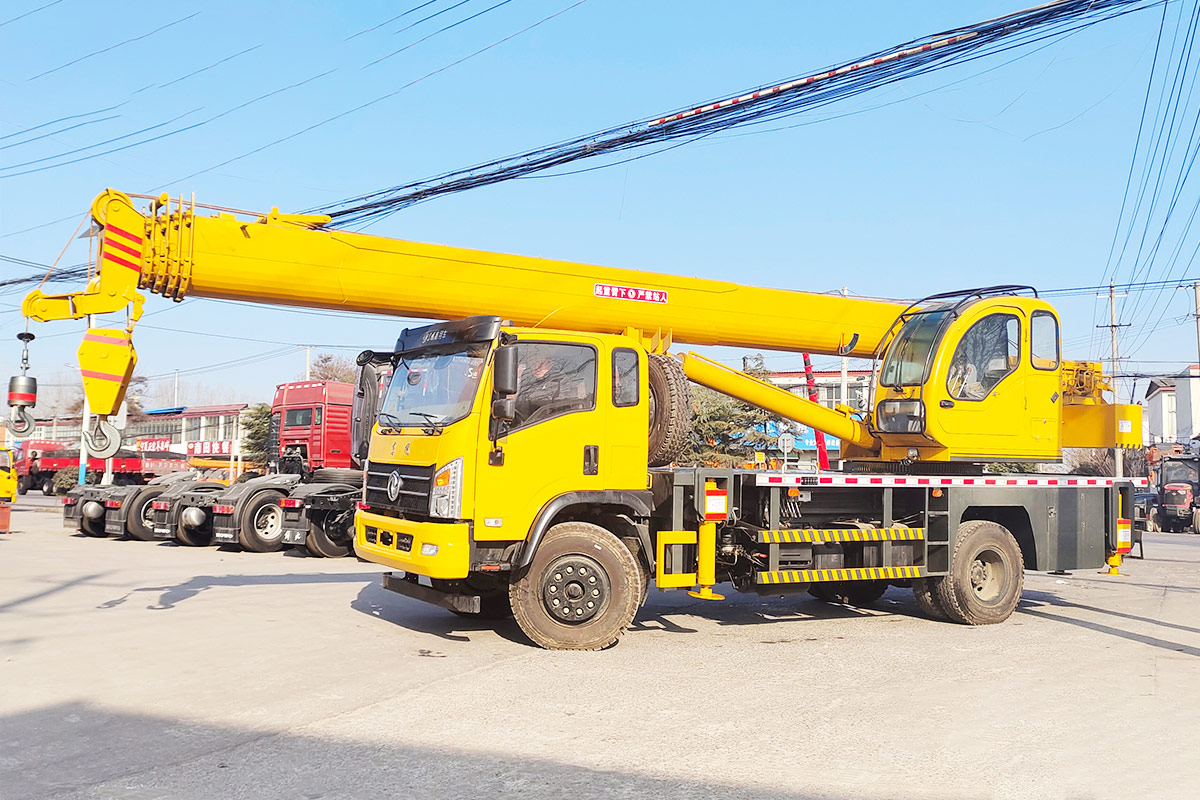

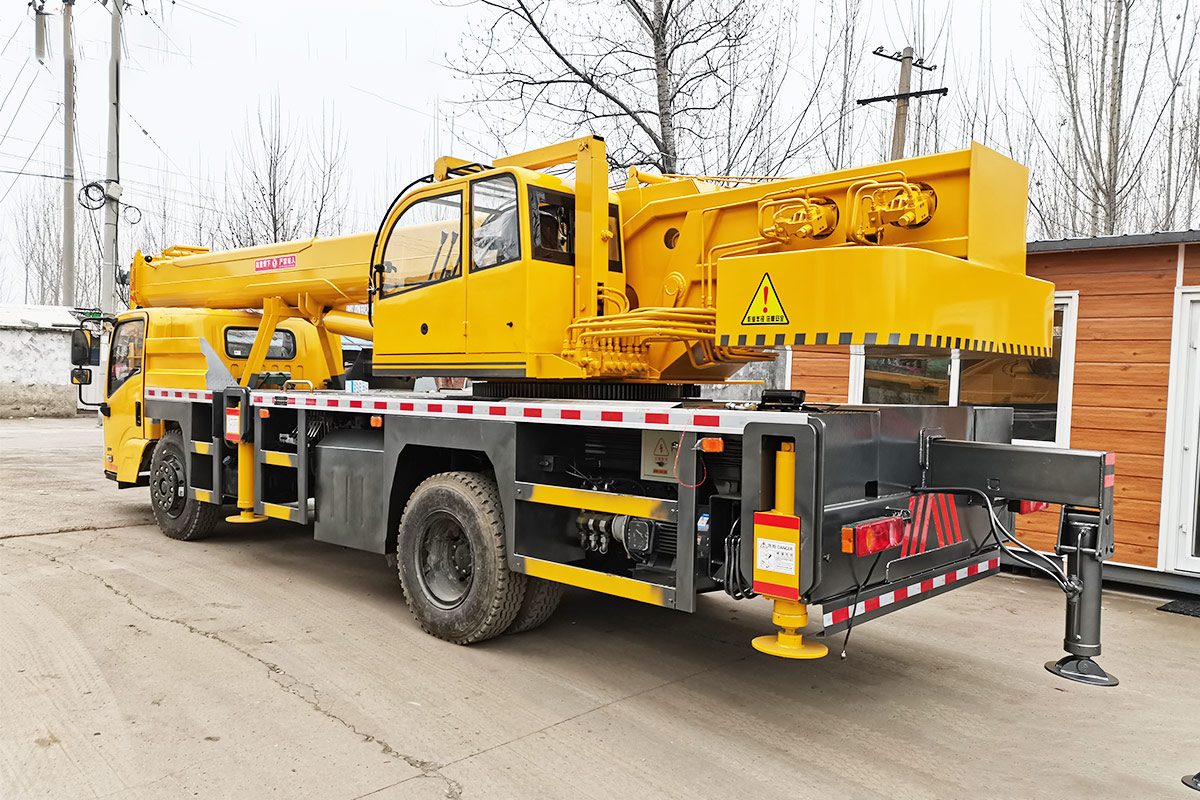

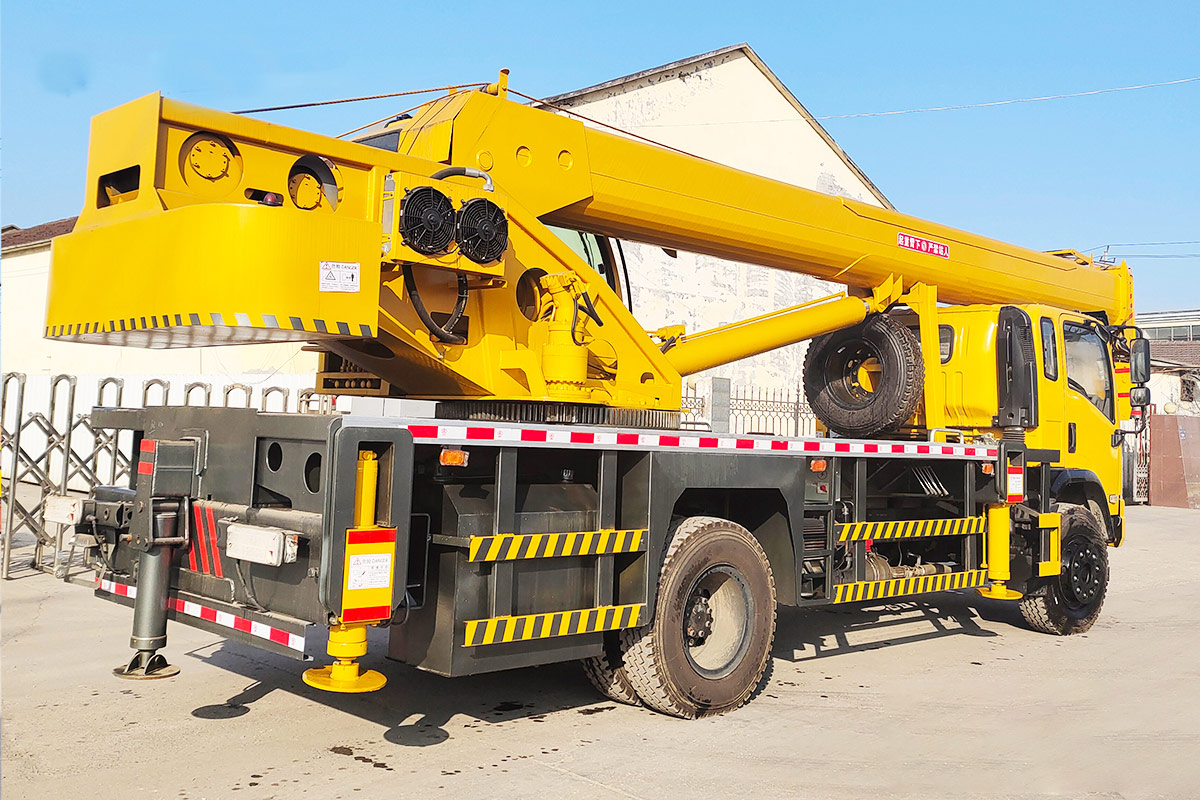

HWQY16T Truck Crane

Training on Arrival
One-year warranty
Factory Direct
Basic Specifications:

Gearbox model: 6-speed
Power (kw hp): 95KW(130hp)
Emission Standards: China Ⅲ

Hengwang Group aims to provide you with complete engineering equipment solutions to reduce your costs and increase your profits.

1. Boom telescopic limit marking and automatic stop report, limit switch three insurance.

2. Hydraulic double-section outriggers, extra-large outrigger span, larger working range and safer. The outrigger cylinder is ejected with small clearance.

3. Double hooks and double winches to improve work efficiency. The winch adopts high-strength multi-strand anti-rotation phosphor-plated steel wire rope, which has long life, high strength and more stable operation.

4. U-shaped section of the arm body, anti-twist design, more uniform force, better telescopic guidance, more stable telescopic

ModelHWQY16T
Chassis modelsXCMG DONGFENG
Weight16000kg (Without counterweight)
Overall Dimensions10.2m*2.45m*3.5m
Wheelbase3800mm
Max. loading capacity16000kg
Max. lifting height30m、35m
Gearbox model6-speed
Power (kw hp)95KW (130hp)
Emission StandardsChina Ⅲ
Braking SystemAir brake
Steering machanismHydraulic Power Steering
Boom section number7m X 5 section rope inside 7m X 6 section rope outside
Main hoisting mechanism16T
Auxiliary hoisting mechanism12T
slewing mechanismPlanetary reducer
Outrigger5 full hydraulic outriggers (double section)
Outrigger span (mm)6250mm
Protective device two way hydraulic control
Number of work lights2
Hydraulic pumpdouble pump 50/40
Oil and electricity dual use15KW  IP6pole motor 40/32
Tire900

Quote now for the best price.

Request a quote

Hengwang Group aims to provide you with complete engineering equipment solutions to reduce your costs and increase your profits.

Fill in the form to get the latest product parameters and the lowest price.

Please fill in the form below to contact us

    All products are guaranteed for 12 months!
