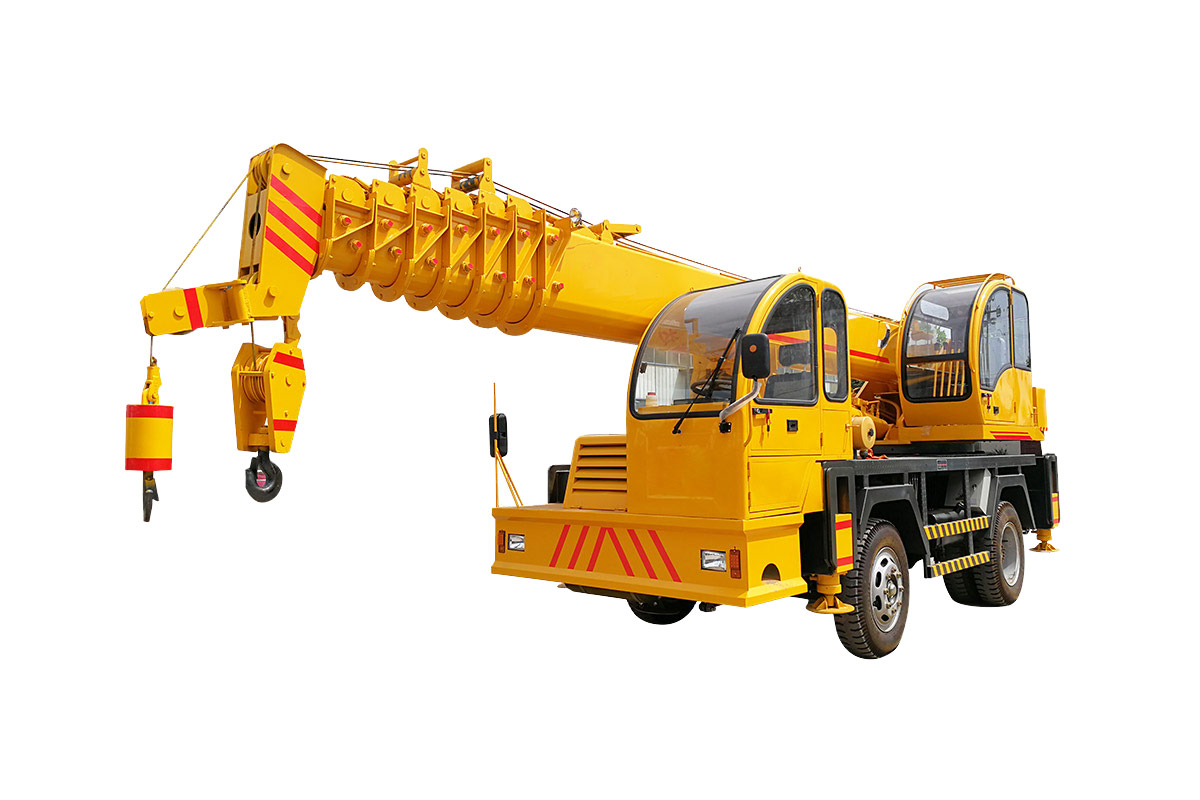

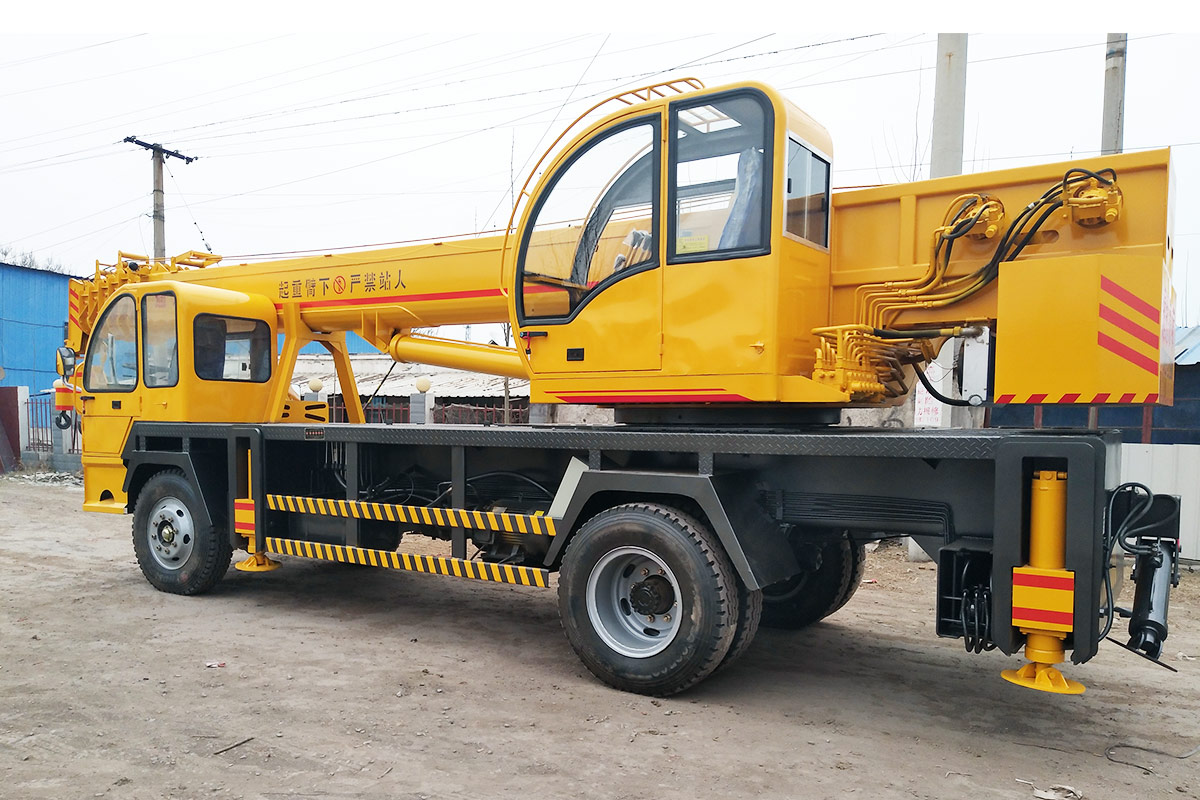

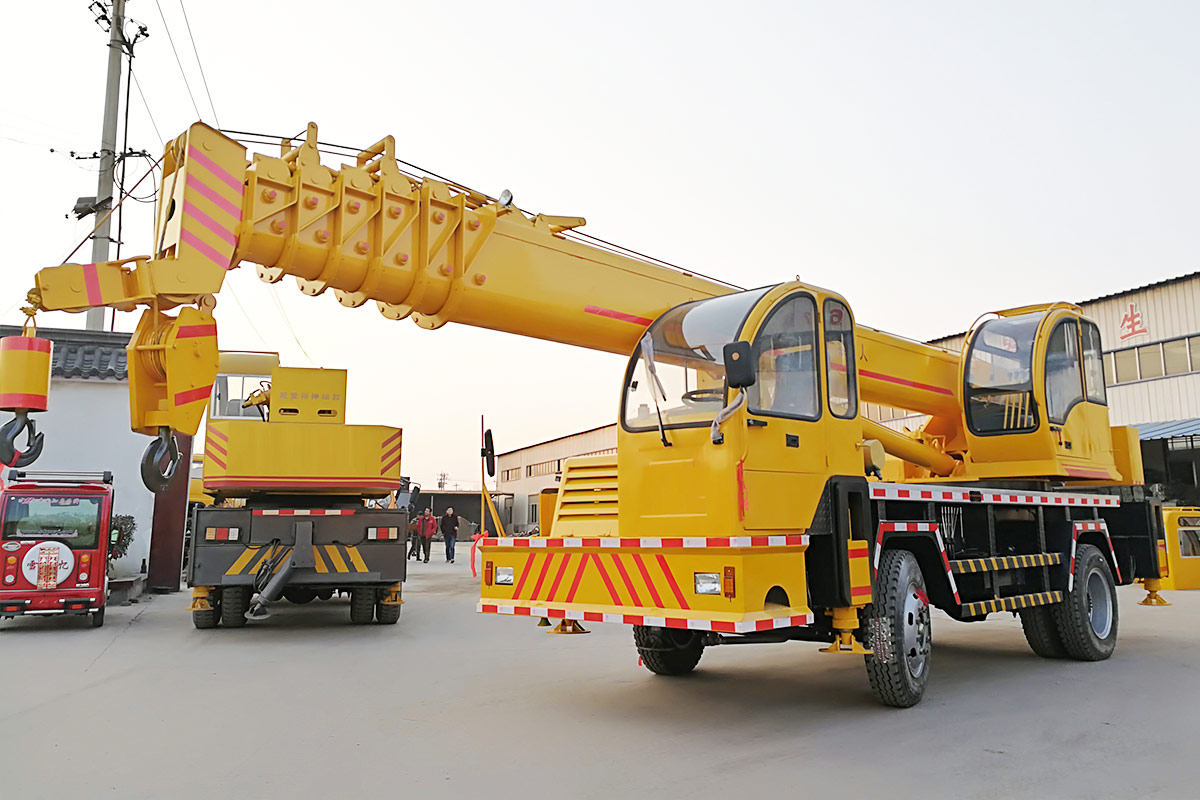

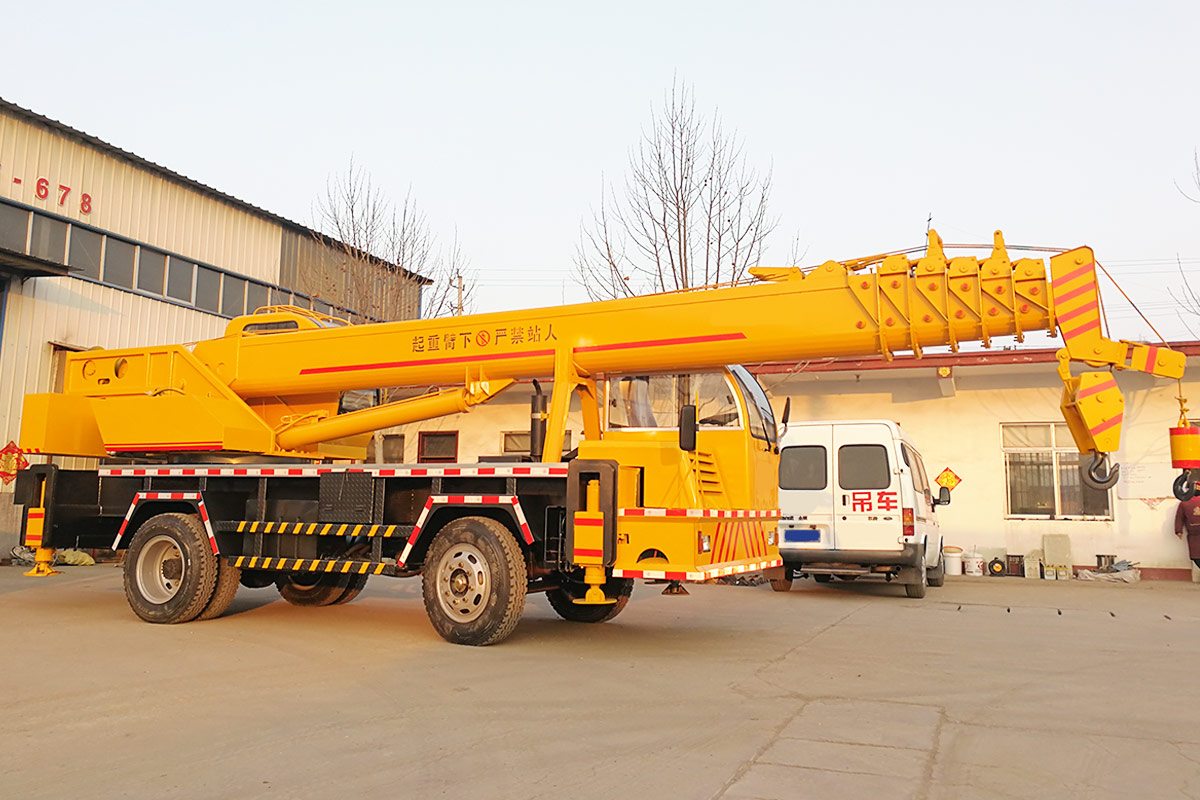

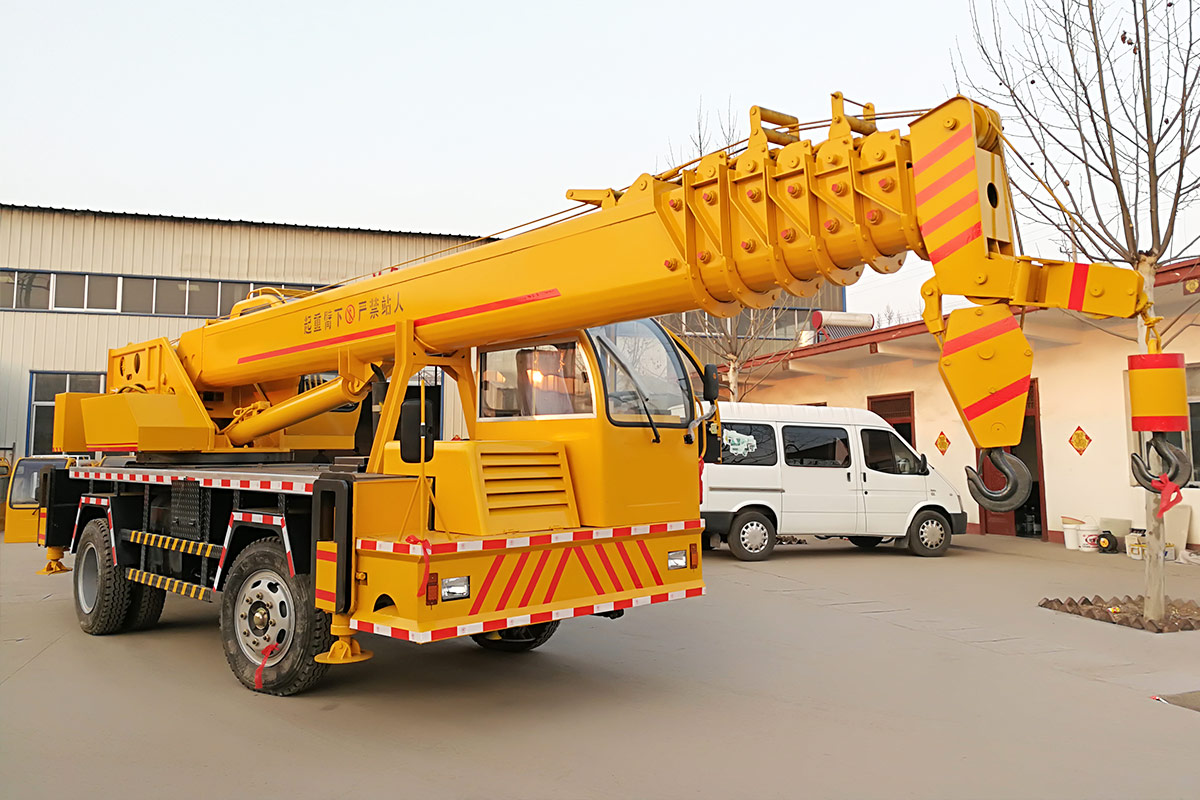

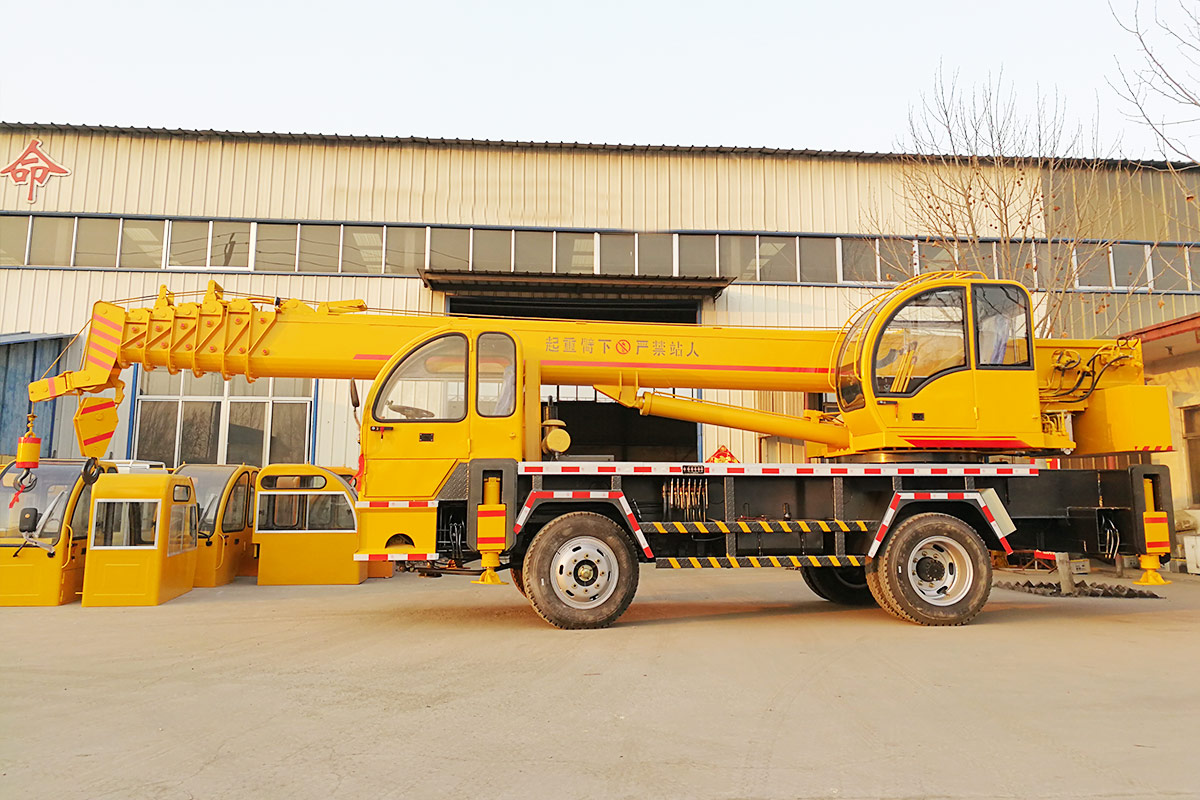

HWQY12T Self-made Truck Crane

Training on Arrival
One-year warranty
Factory Direct
Basic Specifications:

Lifting Weight: 13000Kg
Lifting Height: 30m、35m
Power: 100kw

Hengwang Group aims to provide you with complete engineering equipment solutions to reduce your costs and increase your profits.

Crane is a kind of machine widely used in ports, workshop, electrical and constructional site. The crane is a general name of hoisting machine. Frequently called crane is auto crane, crawler crane and tyre crane. Crane is used in hoisting equipment, emergency rescue, lifting, machinery, the rescue.

Advantages:

1.Leading performance: the boom length in full extension is 32m, the performance leading in 5%. The grade ability is 40%, which make the machine have good road adaptability.

2.The innovative jib system adopts embedded block, plug-in boom head and octagon jib, which has excellent lifting performance and safe and reliable lifting work.

3.Six unique technologies supply the quality assurance, and make the products keep a high value.

4.The control system is optimized by 8 patents; lifting, rotation, and luffing are easy and reliable.

ModelHWQY12T
Weight13000kg
Overall Dimensions8.5m*2.1m*3.05m
Wheelbase2.8m/3.1m (optional)
Max. loading capacity12000kg
Max. lifting height30m、35m
Engine model4105
Gearbox model6-speed
Power (kw hp)100kw     140hp
Emission StandardsChina Ⅲ
Braking SystemAir brake
Steering machanismHydraulic Power Steering
Boom section number5m X 8/6m X 8
Main hoisting mechanism12T
Outrigger6 full hydraulic outriggers (single section)
Outrigger span (mm)6500mm
Protective device two way hydraulic control
Number of work lights2
Hydraulic pumpsingle pump
Oil and electricity dual use11kw IP6 pole motor
Tire825-20
