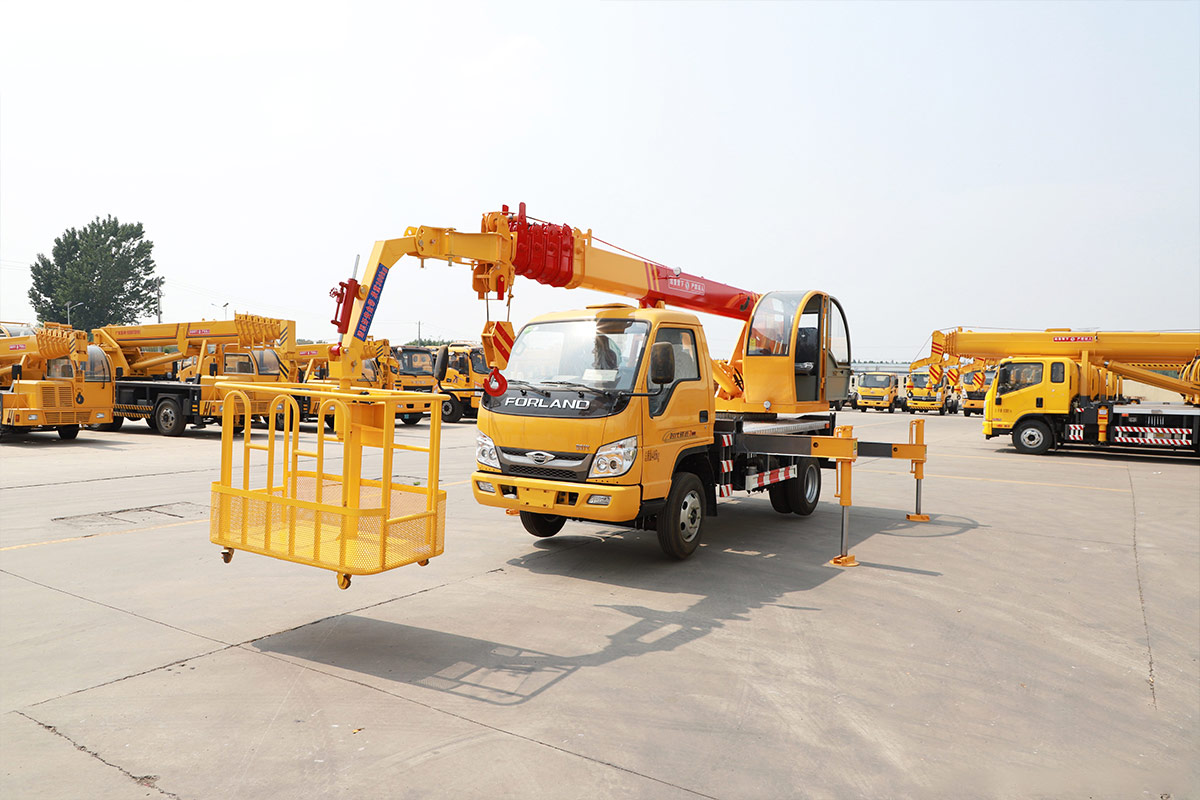

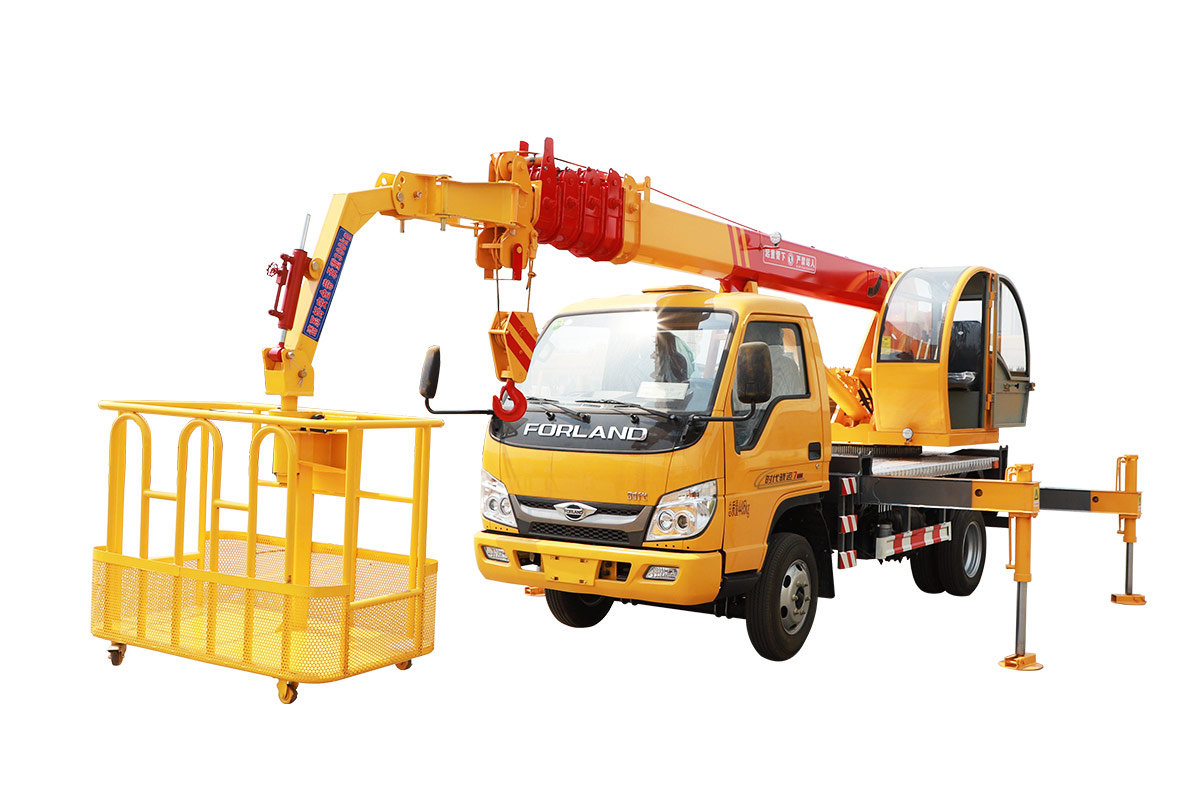

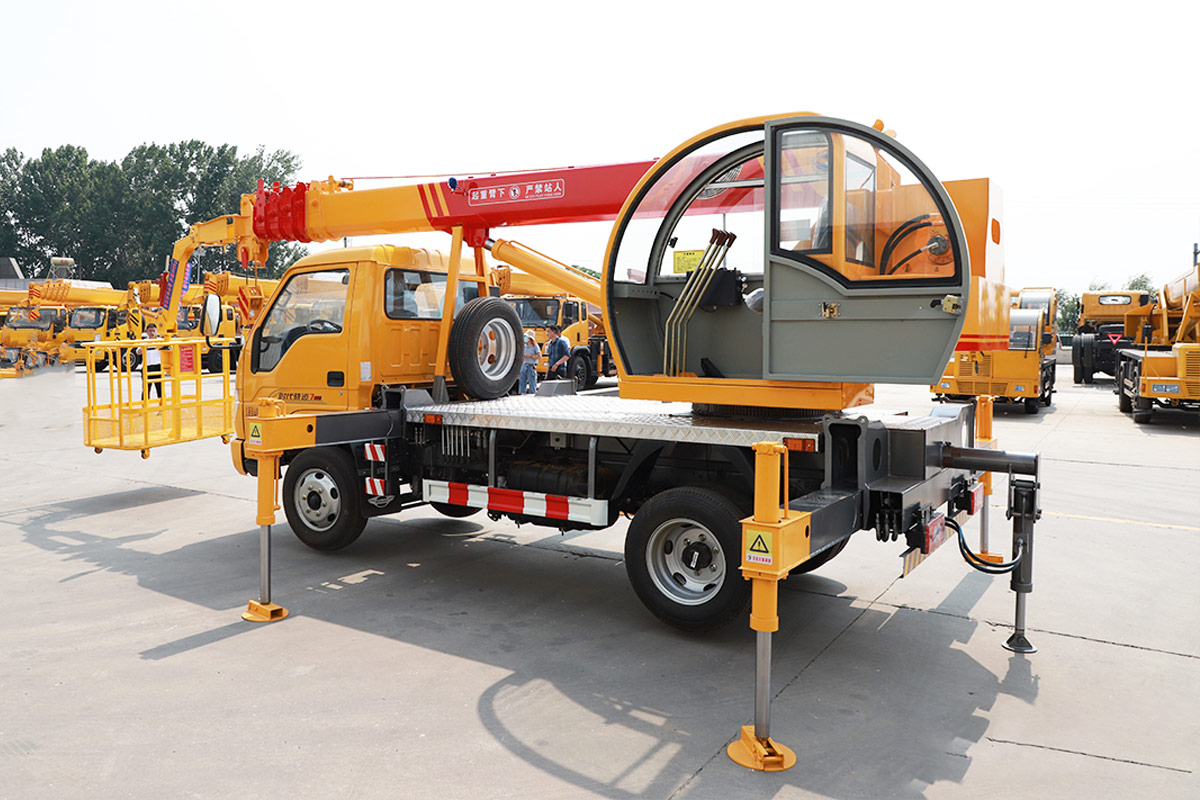

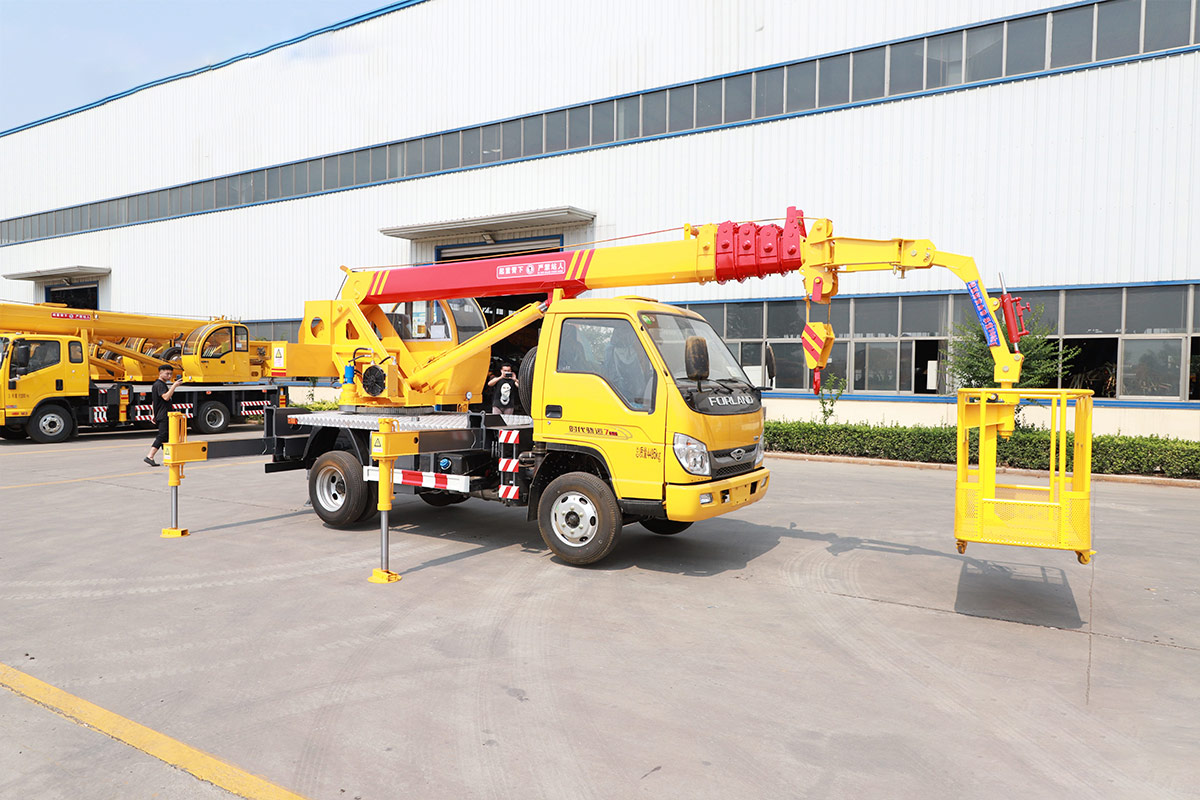

HWFT5T Truck Crane

Training on Arrival
One-year warranty
Factory Direct
Basic Specifications:

Power: 85KW 115hp
Tire type : 650-16 10PR
Wheelbase: 2850

Hengwang Group aims to provide you with complete engineering equipment solutions to reduce your costs and increase your profits.

1. Standard environmental protection national 5 engine, intercooled supercharged, automatically air-cut brake, high and low speed driving.


2. Hydraulic system of the whole vehicle is newly designed, matched with pressure and flow compensation system, load sensing hydraulic control system, easy to operate, high efficiency, smooth movement compound performance, stable and reliable quality, flexible and comfortable operation.


3. The multi-way valve adopts the Lujiate large-flow double valve, double-in and double-out, double oil circuit, the hoisting system is faster and more powerful.


4. Large-diameter four-way central revolving body, equipped with a revolving brake valve to prevent slippage, with reliable buffer self-locking function.


5. The slewing center is equipped with a touch-type electric disc, which can rotate 360 degrees infinitely.


6. Boom telescopic limit marking and automatic stop report, limit switch three insurance.

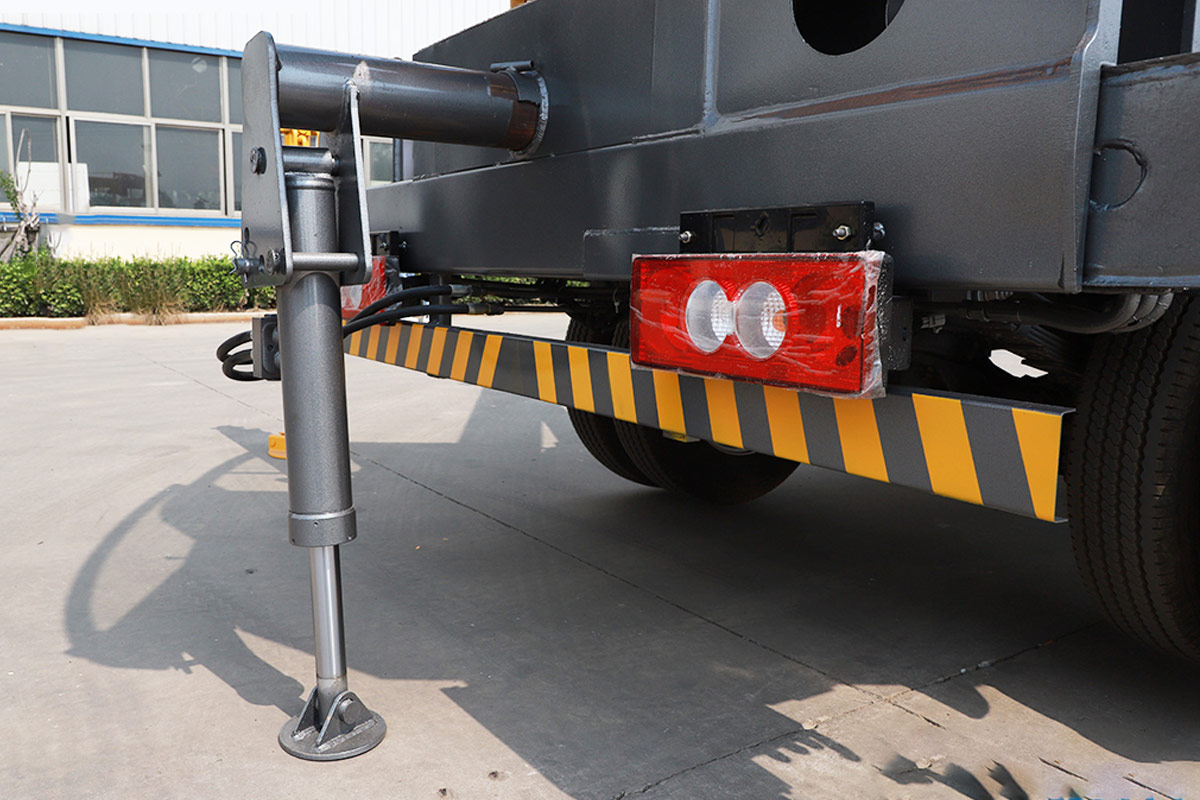

7. Hydraulic double-section outriggers, extra-large outrigger span, larger working range and safer. The outrigger cylinder is ejected with small clearance.


8. Double hooks and double winches to improve work efficiency. The winch adopts high-strength multi-strand anti-rotation phosphor-plated steel wire rope, which has long life, high strength and more stable operation.


9. U-shaped section of the arm body, anti-twist design, more uniform force, better telescopic guidance, more stable telescopic


ModelHWFT5T
Chassis modelsFOTON
Emission StandardsChina Ⅵ (diesel)
Engine brandQuan Chai
Power85KW  115hp
Tire type650-16  10PR
Wheelbase2850
Wheelbase (front/rear)1495/1435mm
Overall Dimensions6.95m*1.9m*2.6m
Steering methodsteering wheel
Braking SystemAir brake
Heater systemwarm air
Max. loading capacity5000kg
Crane arm5m*4section
Main boom length5.4m-16.5m
Max. lifting height18.5m
Maximum Lifting Moment100kN.m
Max elevation0-75°
Rotation angle360°
Swing speed2.5
Hydraulic outriggerAutomatic
Boom telescopicreturn rope
Outrigger span (mm)4500
