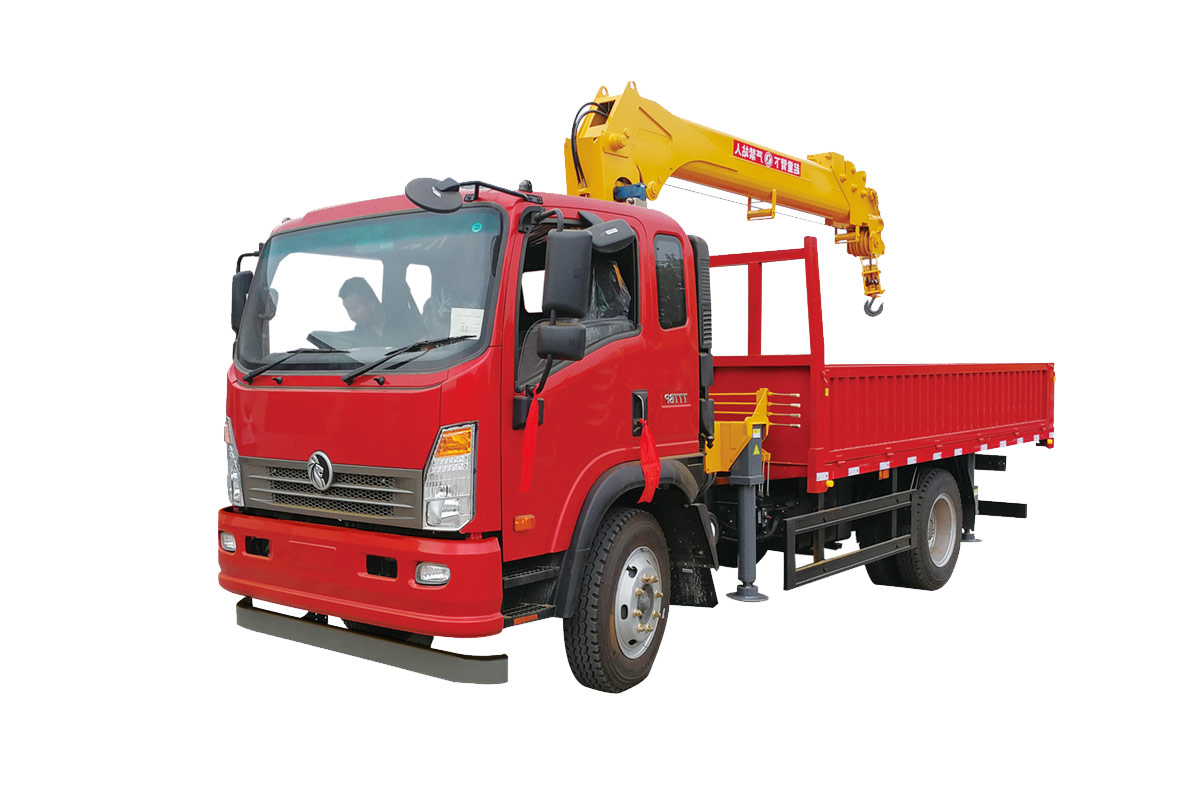

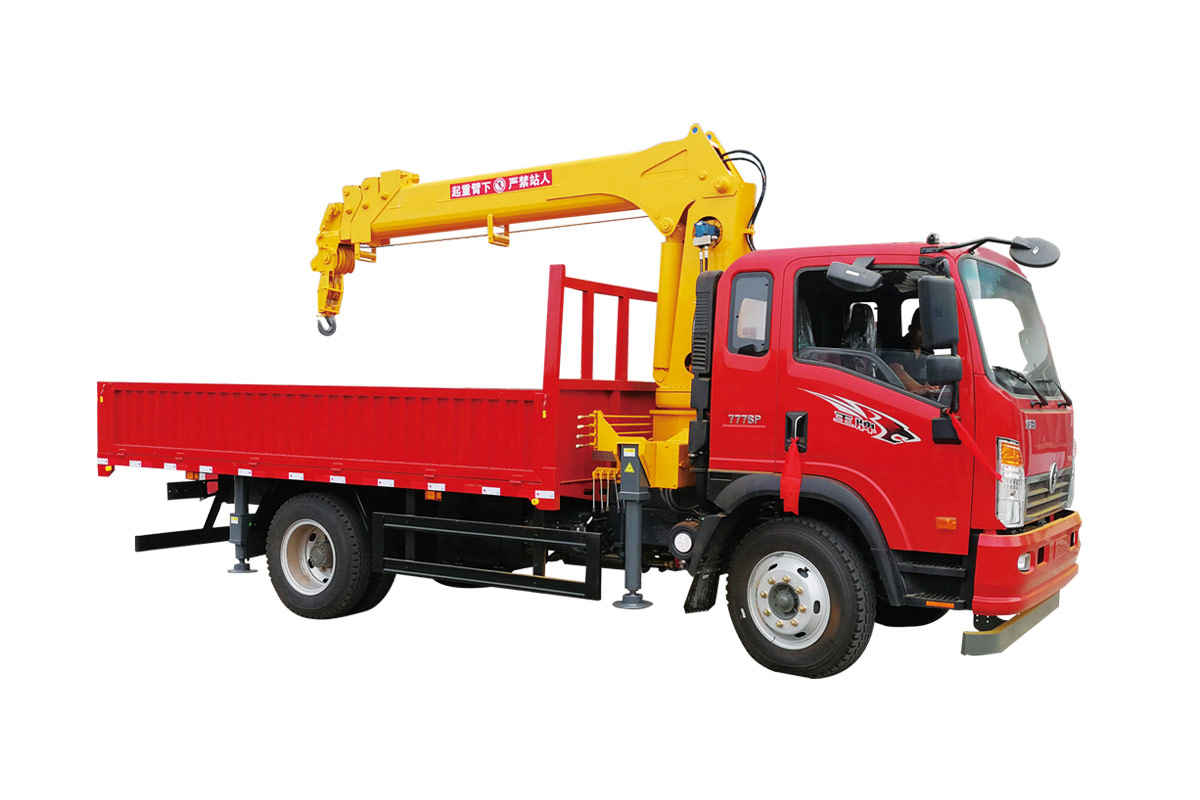

5000KG Truck With Crane

Training on Arrival
One-year warranty
Factory Direct
Basic Specifications:

Total weight (kg):4495
Engine:Yunnei130/Weichai 160
Overall dimensions (mm):5995*2350*3050

Hengwang Group aims to provide you with complete engineering equipment solutions to reduce your costs and increase your profits.

ChassisSinotruk Haoman
Emission StandardsChina Ⅵ
Max.lifting weight (t)3.2/5
Crane arm (m)9.5/9.5
Main boom length (m)3.1/3.1
Max lifting height (m)11.5/11.5
Boom section number4*4
Max elevation0-80°
Rotation angle0-360°
Rotating speed2.5
Hydraulic outriggerAutomatic

1. Standard environmental protection national 5 engine, intercooled supercharged, automatically air-cut brake, high and low speed driving

2. Hydraulic double-section outriggers, extra-large outrigger span, larger working range and safer. The outrigger cylinder is ejected with small clearance

3. Double hooks and double winches to improve work efficiency. The winch adopts high-strength multi-strand anti-rotation phosphor-plated steel wire rope, which has long life, high strength and more stable operation.
