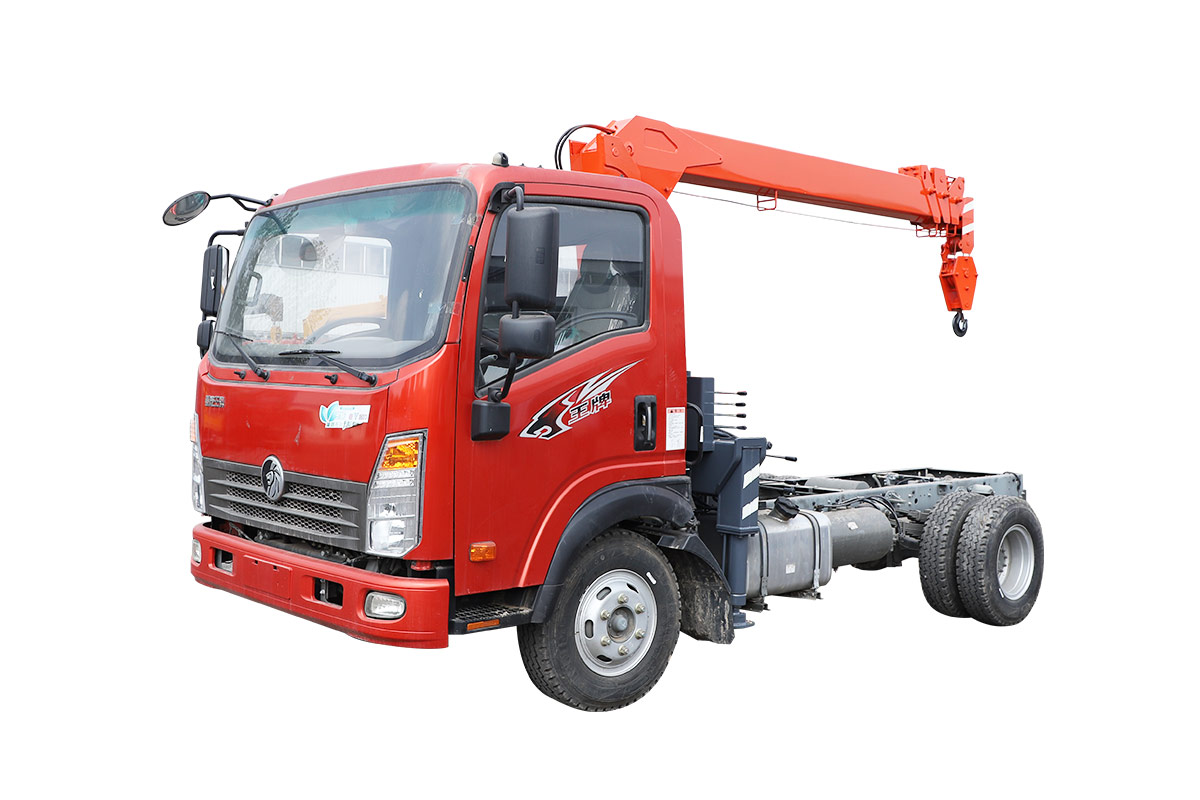

3200KG Truck With Crane

Training on Arrival
One-year warranty
Factory Direct
Basic Specifications:

Total weight (kg):4495
Engine:Yunnei130/Weichai 160
Overall dimensions (mm):5995*2350*3050

Hengwang Group aims to provide you with complete engineering equipment solutions to reduce your costs and increase your profits.


ChassisSinotruk Haoman
Emission StandardsChina Ⅵ
Max.lifting weight (t)3.2/5
Crane arm (m)9.5/9.5
Main boom length (m)3.1/3.1
Max lifting height (m)11.5/11.5
Boom section number4/4
Max elevation0-80°
Rotation angle0-360°
Rotating speed2.5

1. Standard environmental protection national 5 engine, intercooled supercharged, automatically air-cut brake, high and low speed driving

2. Hydraulic double-section outriggers, extra-large outrigger span, larger working range and safer. The outrigger cylinder is ejected with small clearance

3. Double hooks and double winches to improve work efficiency. The winch adopts high-strength multi-strand anti-rotation phosphor-plated steel wire rope, which has long life, high strength and more stable operation.

4. Increase the slewing support of the external gear turntable, making the slewing action more stable and safer

5. U-shaped section of the arm body, anti-twist design, more uniform force, better telescopic guidance, more stable telescopic.
