HW500 Spider Crane

Training on Arrival
One-year warranty
Factory Direct
Basic Specifications:

Specification:5.0t
Max working radius:14m(0.5ton)
Engine power:48kw

Hengwang Group aims to provide you with complete engineering equipment solutions to reduce your costs and increase your profits.

Hengwang brand miniature cranes are specially designed and manufactured for working in indoor or outdoor low-passage confined areas.

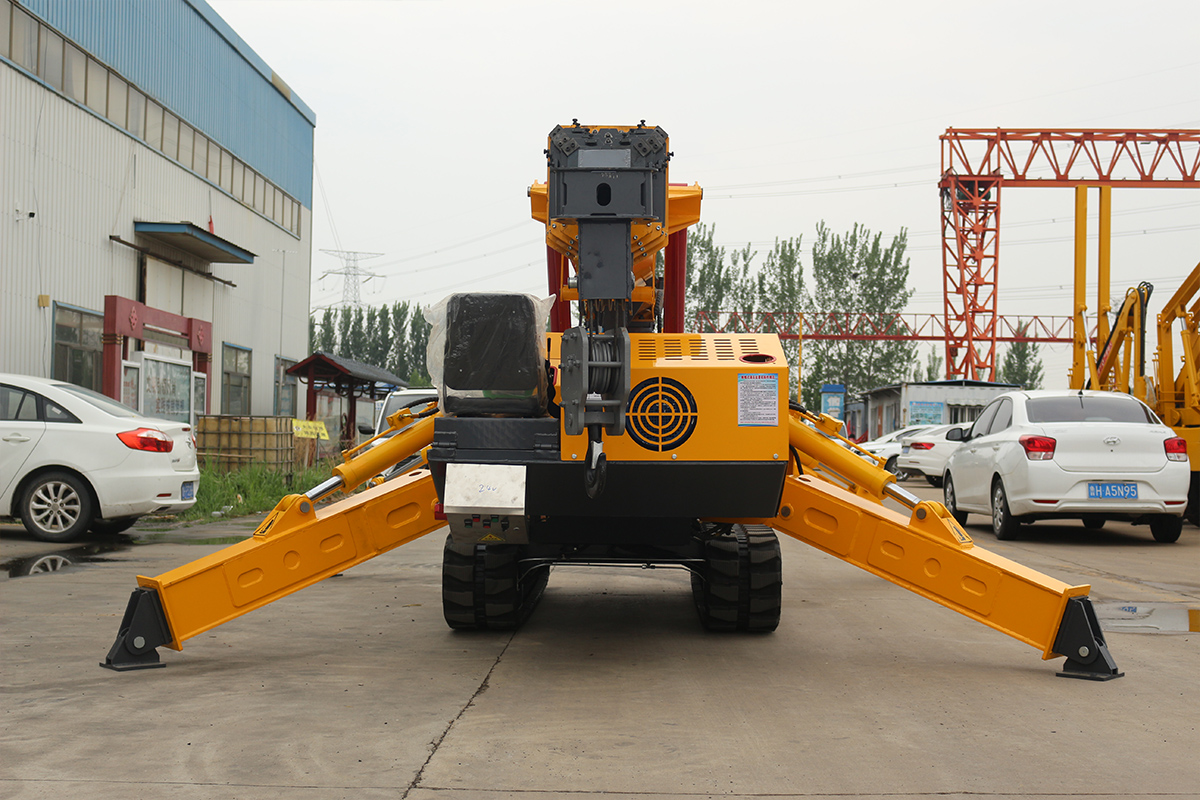

It was mounted on a double-track chassis with "spider-type" outriggers.

Hengwang miniature cranes are compact and easy to move, and are used in places where traditional lifting equipment or truck-mounted cranes cannot be used due to their size.



ModelHW500
Specification5.0t
DimensionL5000mm*W1500mm*H2200mm
Machine weight6800kg
Max working radius14m(0.5ton)
Max lifting height16.8m
Standard configurationProportional Valve and Proportional Remote control , Diesel engine, Electric motor, Power distribution box, Searcher hook, Storage battery, Black rubber track, EMO switch, Three color lamp, Remote control lamp, Luffing balance valve, Telescopic balance valve, Hook anti-decoupling device, Slewing brake, Winch brake, Outrigger off the ground alarm and automatic stop device, Walking/Outrigger/Boom three-mode interlock system, Extra two sets of filters
