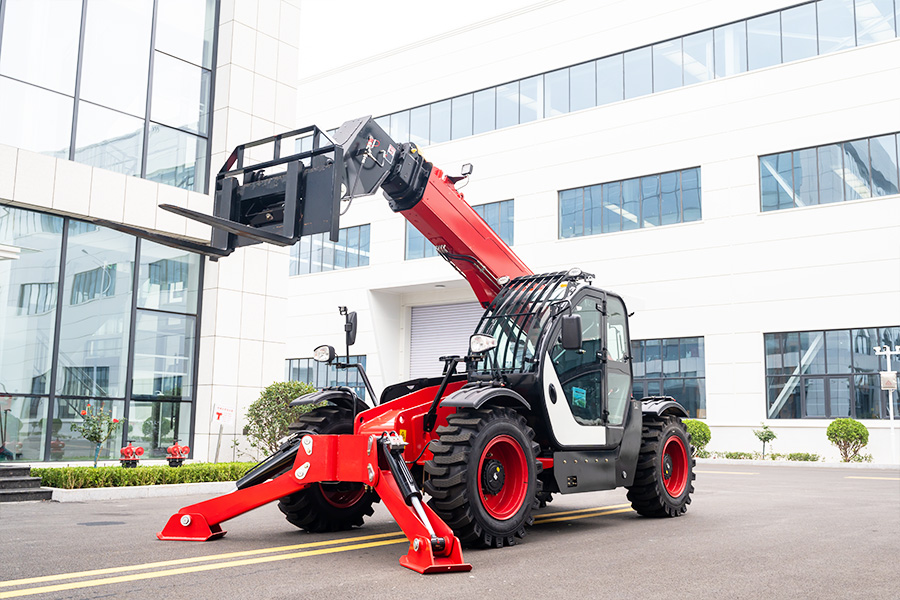

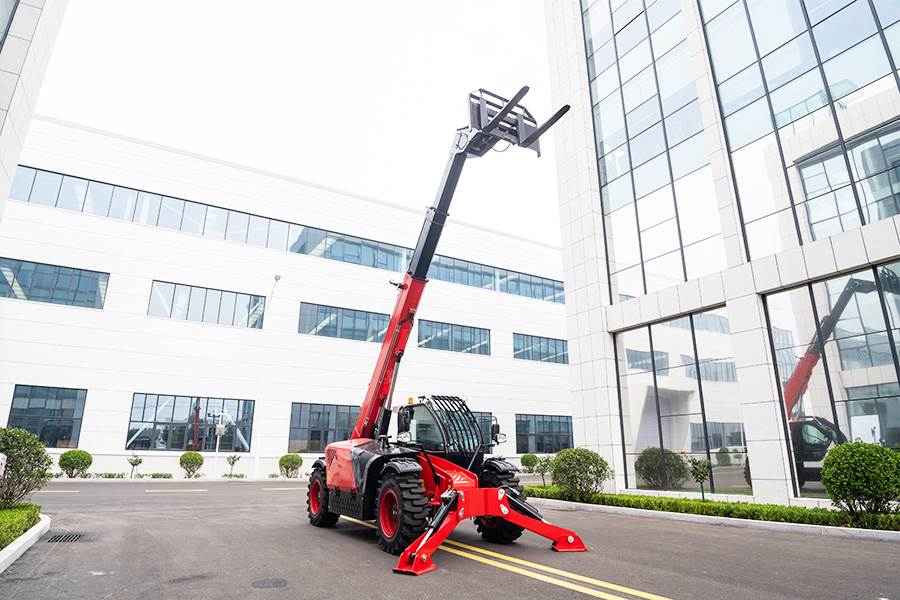

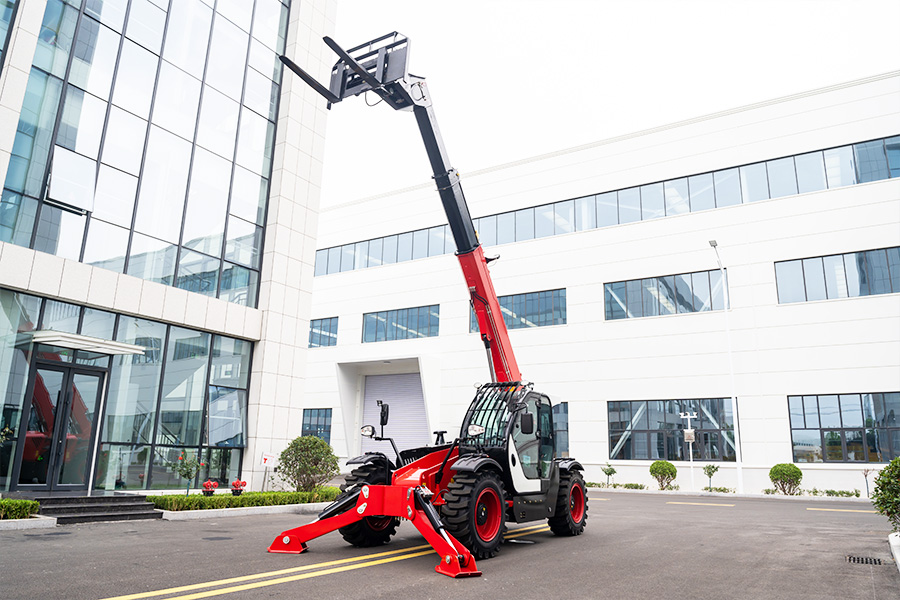

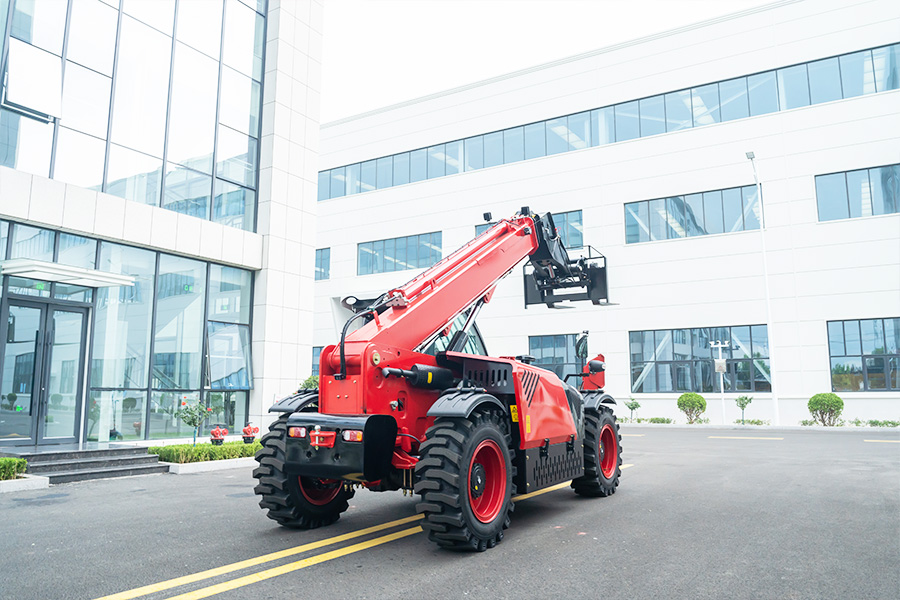

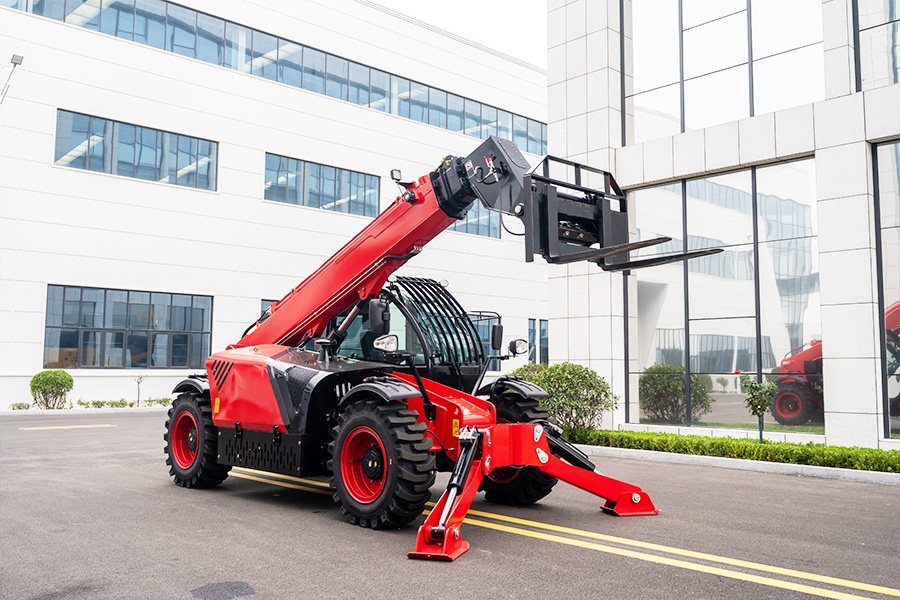

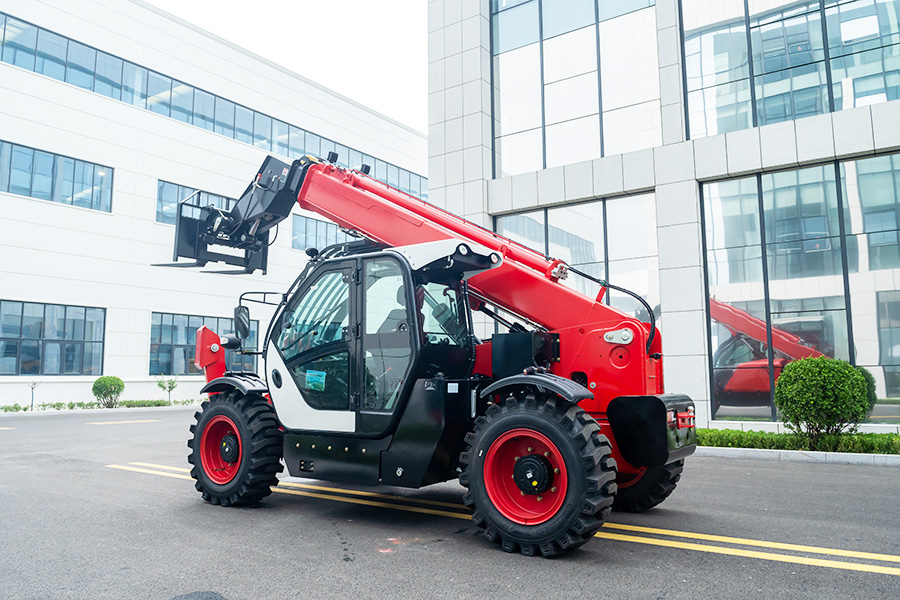

HWR4018 Telescopic handler
Training on Arrival
One-year warranty
Factory Direct
Basic Specifications:
Power:140 kW
L× W× H：7500mm×2420mm×2810mm
Unladen weight(with fork):13000 kg
Hengwang Group aims to provide you with complete engineering equipment solutions to reduce your costs and increase your profits.
BackTelehandlers will take your material handling productivity to new heights. Telehandlers offer the extended reach and superior lift capacity of a heavy-duty telescoping boom combined with a range of attachments. It will quickly become your go-to machine for farming and ranching applications, construction, landscaping, snow removal, and much more.
Telehandlers are designed durable – and built to last – with a combination of tough construction, high-quality materials and features that maximize reliability. Look to the rigid frame, sealed engine compartment and side-by-side cooling design and know it’s ready for the most severe conditions.
| Main technical parameters | |
| Rated load | 4000KG |
| Operating weight | 13000KG |
| Maximum lifting height | 1750±50mm |
| Maximum reach distance | 1300±50mm |
| Engine | |
| Engine model | Cummins National III QSF3.8-C140 |
| Cooling type | Water cooling |
| Rated power | 104(kW) |
| Total exhaust of cylinder | 3.8L |
| Rated speed | 2200(r/min) |
| Max. Torque | 540(N.M) |
| Hydraulic system | |
| Working pump displacement | Variable displacement piston pump 63cc/rev |
| Working pump pressure | 265bar |
| Walking pump | 75cc/rev variable piston pump |
| Walking pump pressure | 400bar |
With their compact size, lift capacity, maneuverability and attachment versatility, there’s little that telehandlers can’t do. Adding one to your fleet can help you take your business to new heights.
