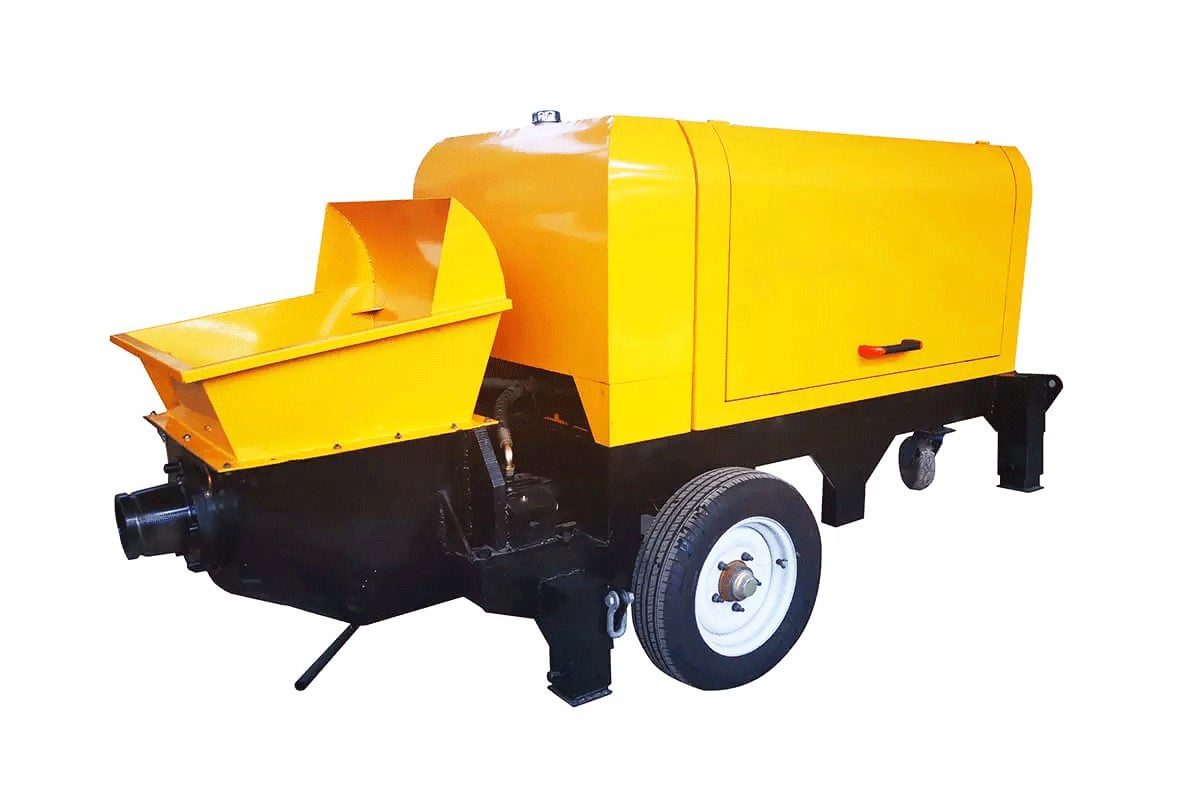

HW20-37 Concrete Pump

Training on Arrival
One-year warranty
Factory Direct
Basic Specifications:

Rated Power: 37Kw
Aggregate size: 20mm
Output: 30m3/h

Hengwang Group aims to provide you with complete engineering equipment solutions to reduce your costs and increase your profits.

1. Hydraulic system: the application of new electronic control commutation technology makes the pumping work more reliable and the failure rate of hydraulic system lower; Equipped with special valve of hydraulic control system, large through-flow, low energy consumption and small impact, extending service life.

2. Power system: Concrete pump adopts Siomens brand motor, a well-known brand at home and abroad. And diesel concrete pump adopts tianjin levo and yuchai brands with low energy consumption and high efficiency.

3. heat dissipation system: the use of air cooling or water cooling double cooling system,can guarantee the stability of equipment operation in high temperature,cold and other harsh climate conditions.


Model

HW20-37

Power

37kw

Voltage

380V

Vertical delivery distance

120m

Horizontal delivery distance

250m

Output

30m3/h

Max.Aggregate size

20mm

Outlet diameter

140mm

Cylinder stroke

1100mm

Pipe diameter

100mm

Dimension

3500*1700*1800mm

Weight

1500kg
