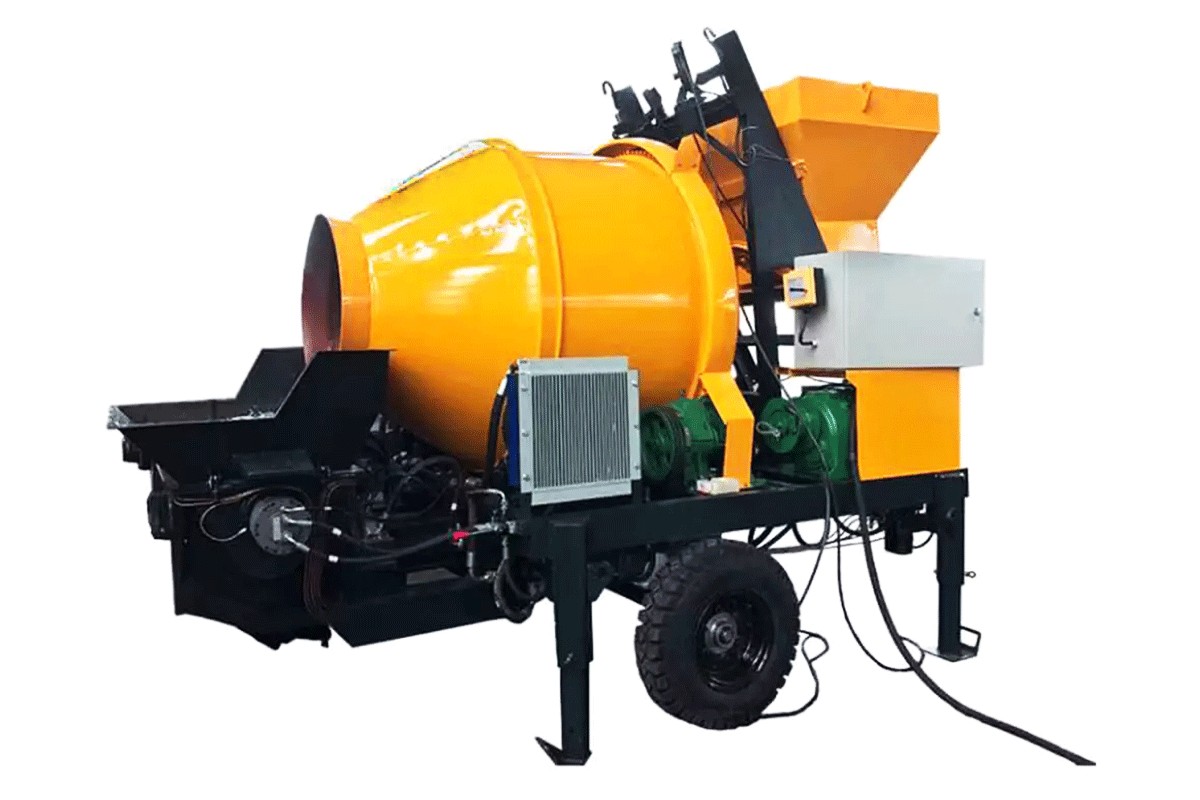

HW-JBT30-06 Concrete Mixer Pump

Training on Arrival
One-year warranty
Factory Direct
Basic Specifications:

Rated Power: 30Kw
Max Aggregate Size: 125mm
Output: 15m³/h

Hengwang Group aims to provide you with complete engineering equipment solutions to reduce your costs and increase your profits.

The concrete mixer pump, is a traditional concrete mixers and concrete pumps together, to achieve full concrete construction process automation material, mixing, pumping in one of the small high pressure concrete pump, suitable for small and medium sized, ground transportation, such as playing a large village aggregate concrete, especially for a group of 12 layer floor, small bridges, wild place scattered site mixing of concrete construction projects.

The product can be achieved without human or trailer transitions, greatly improved work efficiency.


ItemUniteHW-JBT30-06

Drum capacity

L

450

Hopper

capacity

L

450

Filling height

mm

1000

Output pressure

Mpa

6

Thero output

M3/H

30

The delivery cylinder

mm

Φ160*1000

Mixer filling model

Climbing

Max aggregate diameter

mm

Φ80

Pump distanceVertical

M

120

Horizontal

M

300

Engine model

Electric power

Main power (kw)

kw

Pump motor

30

Concrete slump

cm

12-23

running piping

mm

Φ80,Φ100,Φ125

Dimension (mm)

mm

5000*2280*2900

Weight

KG

4000
