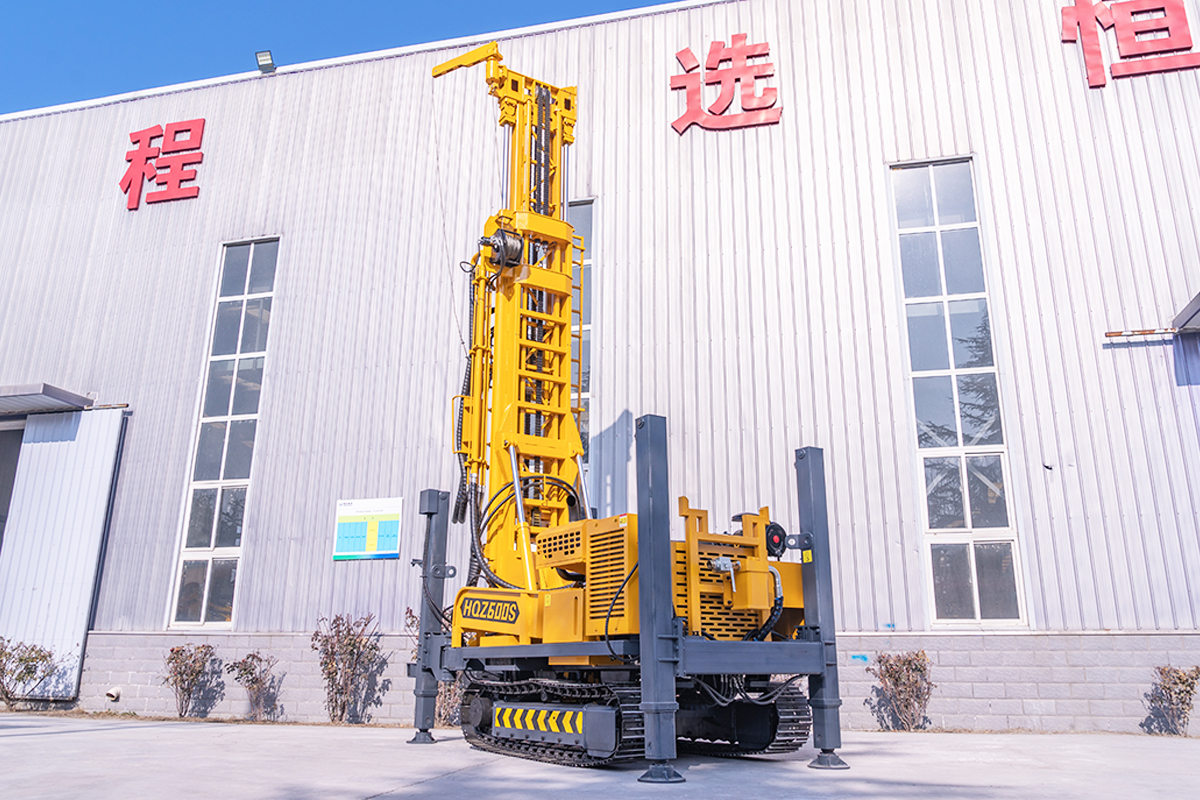

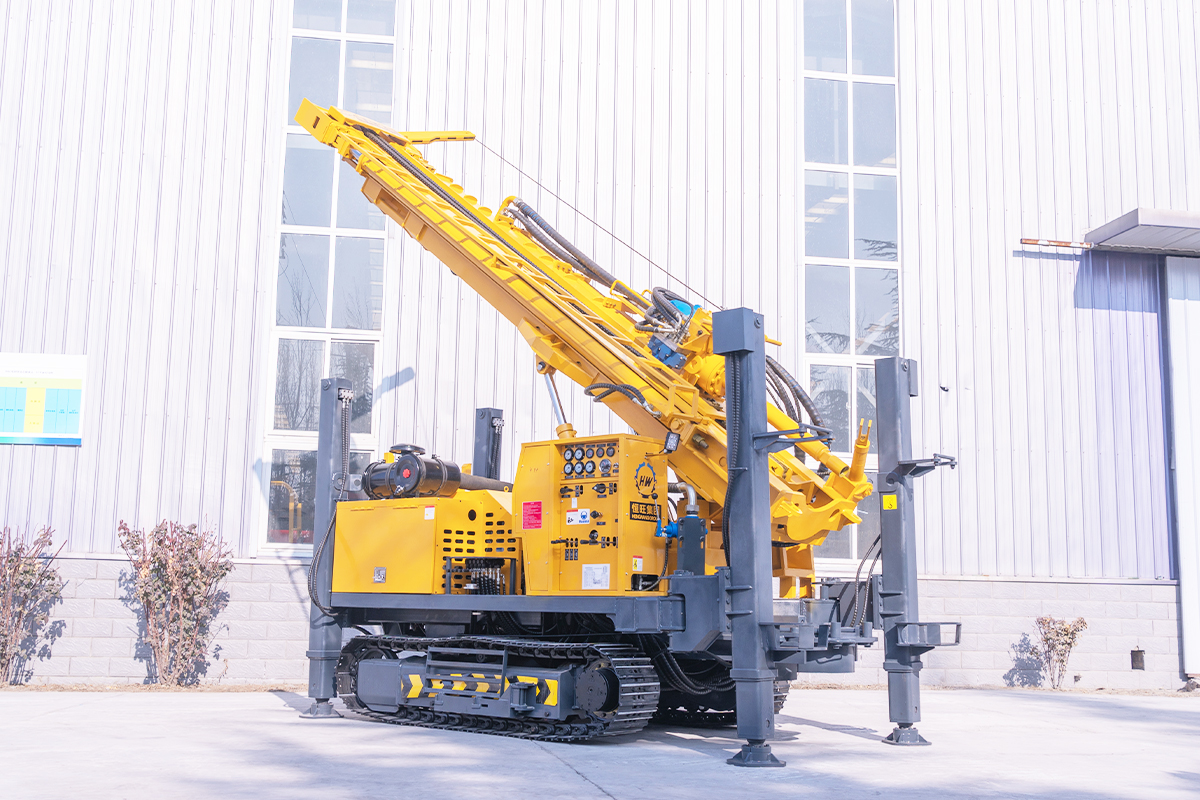

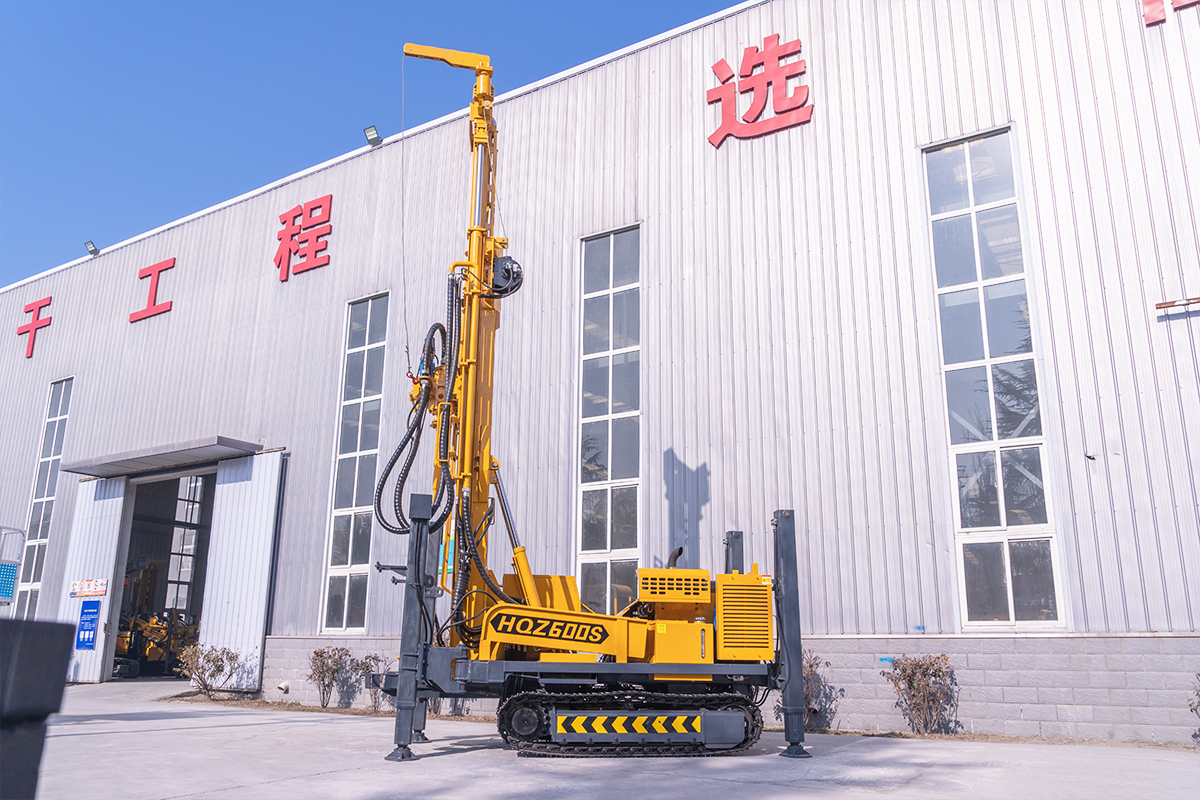

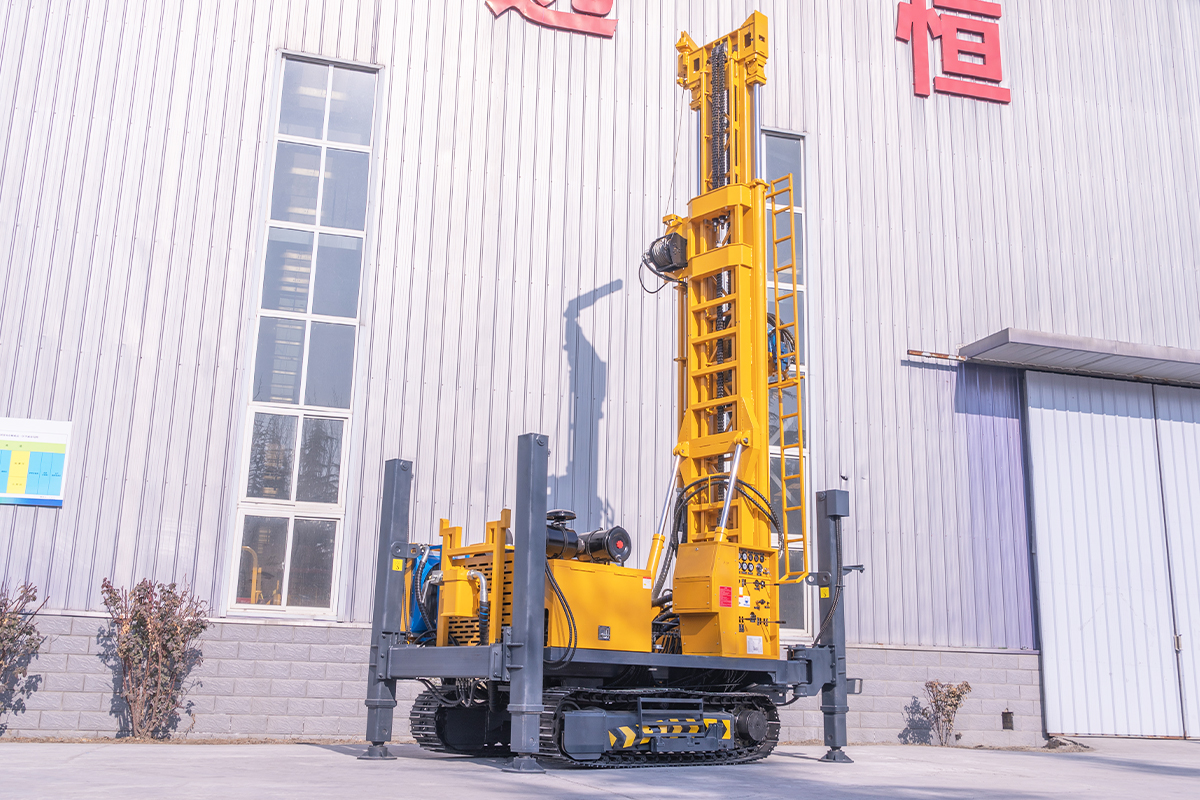

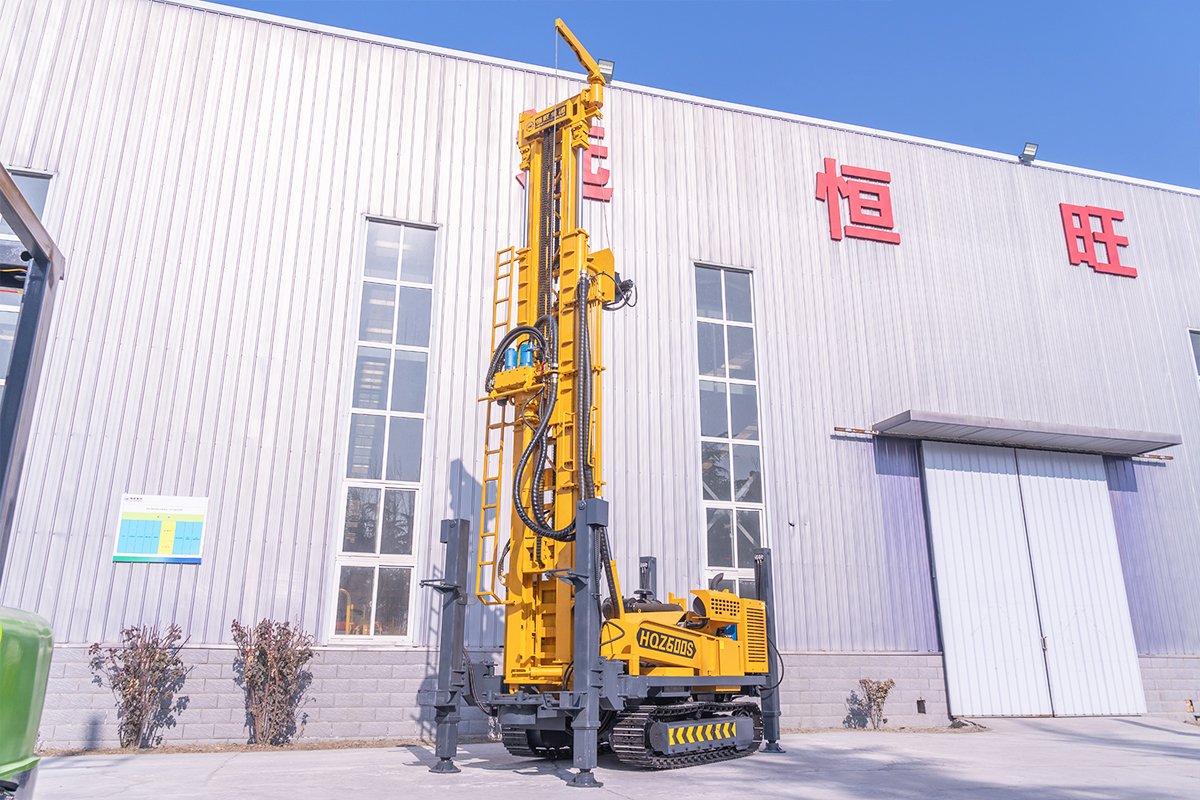

HQZ-600L Pneumatic Drill Rig
Training on Arrival
One-year warranty
Factory Direct
Basic Specifications:
Drilling depth: 600m
Drilling diameter: 130-350mm
Engine Power: 132Kw
Hengwang Group aims to provide you with complete engineering equipment solutions to reduce your costs and increase your profits.
Back
| model | HQZ-600L | |
| tower | 6 | m |
| Chassis | Steel track | / |
| Drilling diameter | 130-350 | mm |
| Drilling depth | 600 | m |
| One-time advancement length | 6.6 | m |
| Walking speed | 2.5 | km/h |
| Maximum gradeability | 30 | / |
| Engine brand | Yuchai | / |
| Engine power | 132 | kw |
| working pressure | 1.7-3.5 | mpa |
| Air consumption | 17-42 | m³/min |
| Drill pipe diameter | 102/108/114 | mm |
| Drill pipe length | 3.0/6.0 | m |
| Lifting power | 28 | T |
| Swing speed | 45-115 | rpm |
| Rotating torque | 9000-11000 | N.m |
| Dimensions | 6000*2200*2950 | mm |
| weight | 12 | T |
All products are guaranteed for 12 months!
