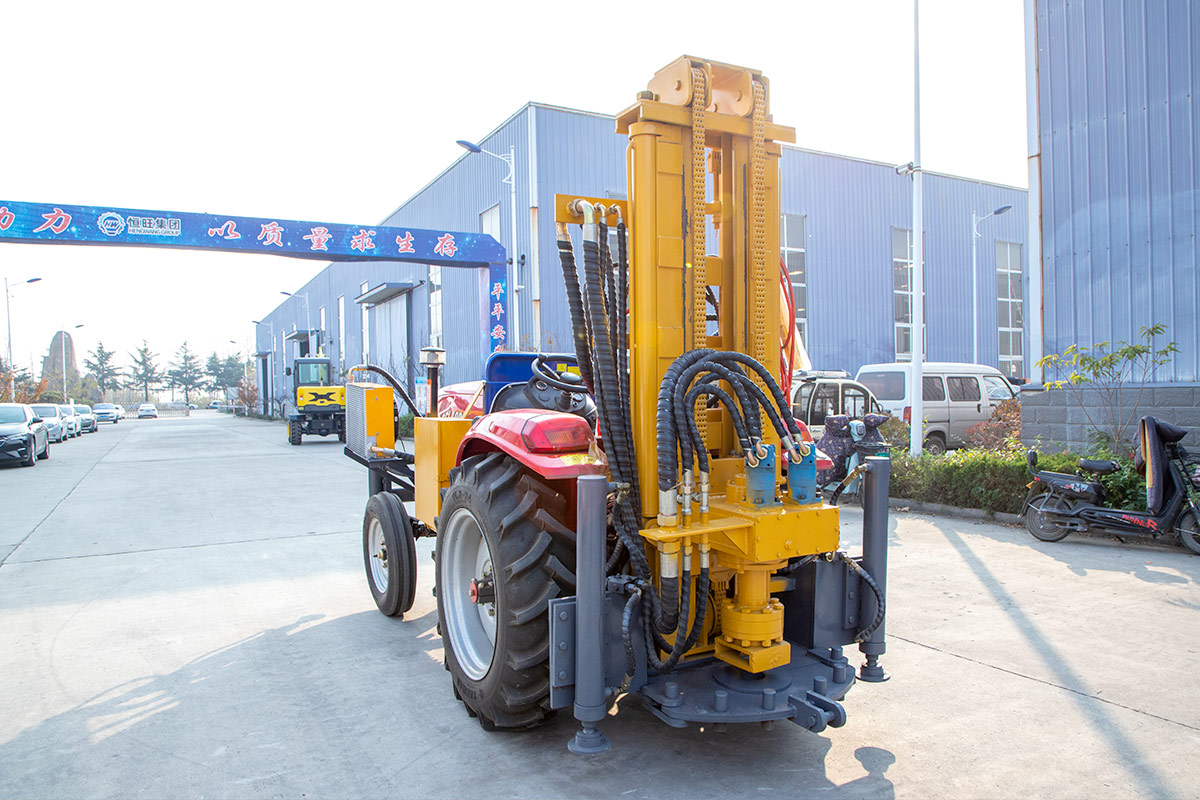

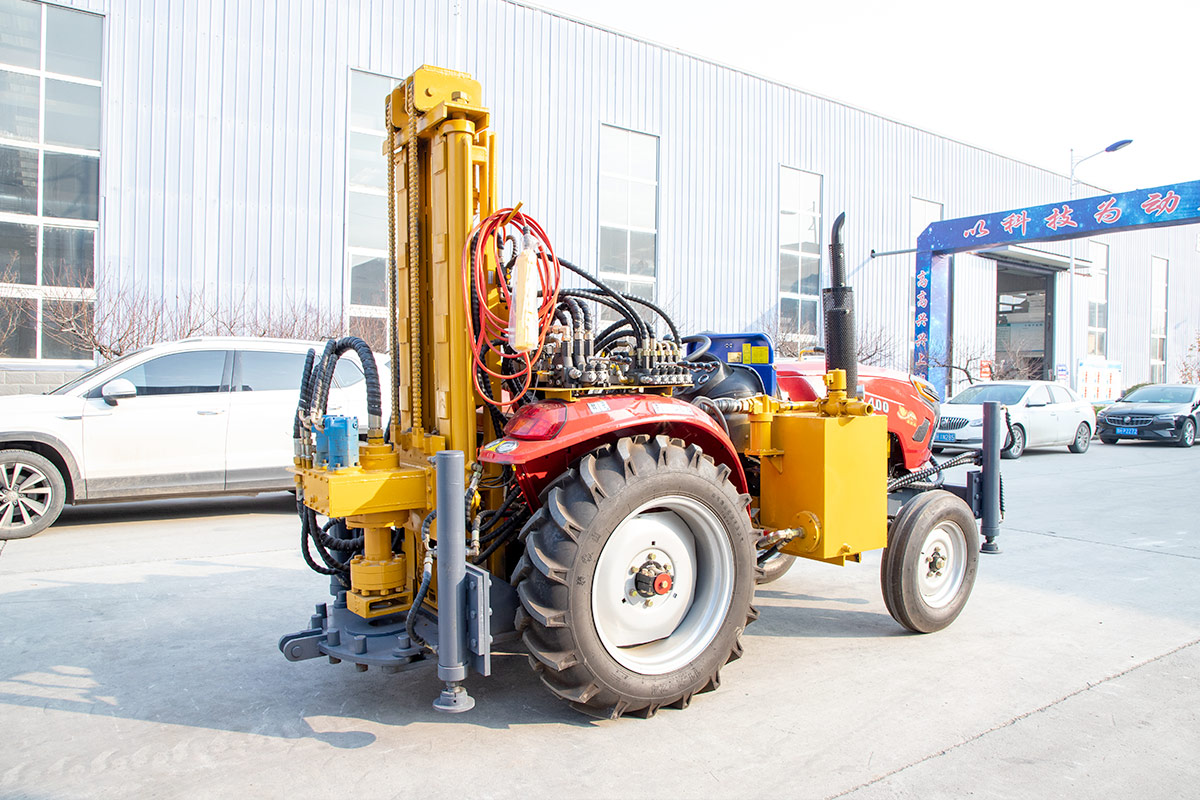

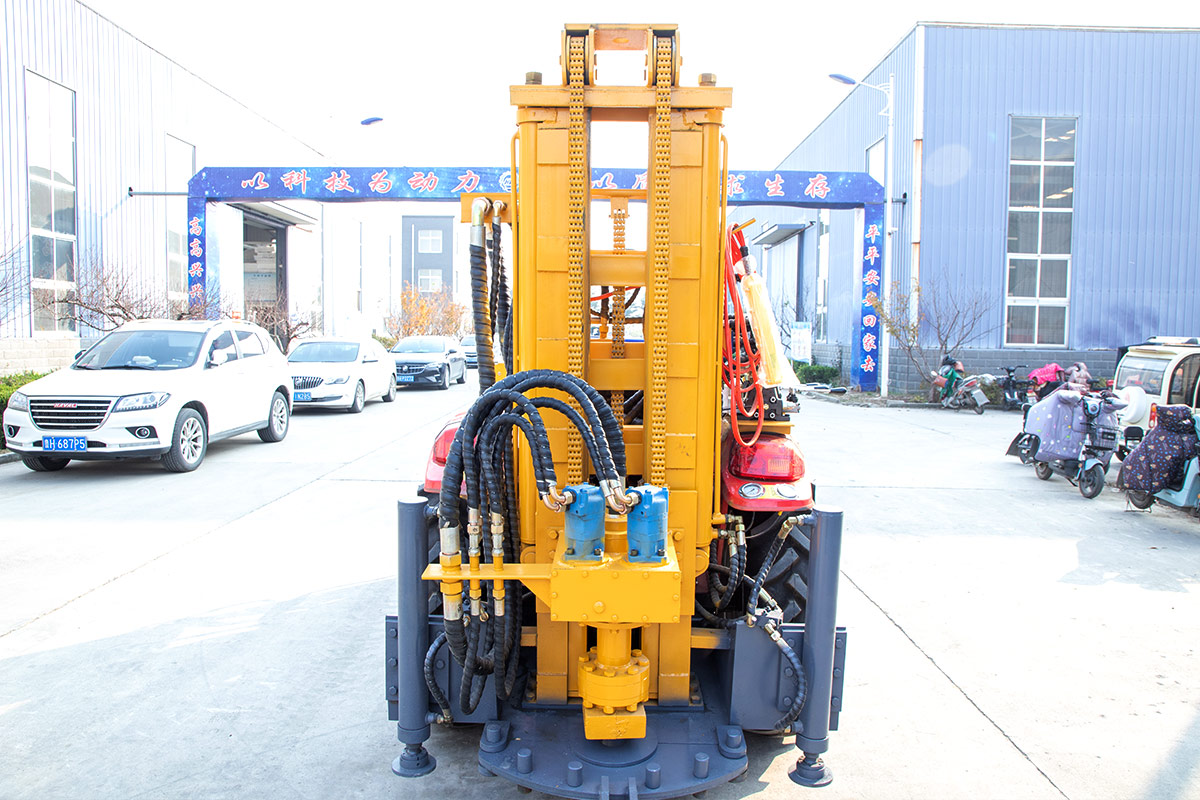

TQZ-200 Pneumatic Drill Rig
Training on Arrival
One-year warranty
Factory Direct
Basic Specifications:
Drilling depth: 200m
Drilling diameter: 130-254mm
Engine Power: 40Hp
Hengwang Group aims to provide you with complete engineering equipment solutions to reduce your costs and increase your profits.
BackMain features:
1. High power, fast drilling speed and low unit fuel consumption;
2. Large aperture, up to 130~219mm;
3. Tracked chassis improves off-road performance.
Parameter:
| model | HQZ-200 | |
| Chassis | Tractor | / |
| Drilling diameter | 130-254 | mm |
| Drilling depth | 200 | m |
| One-time advancement length | 1.5 | m |
| Engine power | 40 | HP |
| working pressure | 1.7-2.5 | mpa |
| Air consumption | 17-31 | m³/min |
| Drill pipe diameter | 76/89 | mm |
| Drill pipe length | 1.5 | m |
| Lifting power | 12 | T |
| Swing speed | 40-60 | rpm |
| Rotating torque | 3500-3800 | N.m |
| Dimensions | 3900*1600*2600 | mm |
| weight | 3.5 | T |
Due to the continuous update and progress of technology, technical parameters and configurations are subject to actual delivery.
Submit the form to get the latest parameters and quotes.
All products are guaranteed for 12 months!
