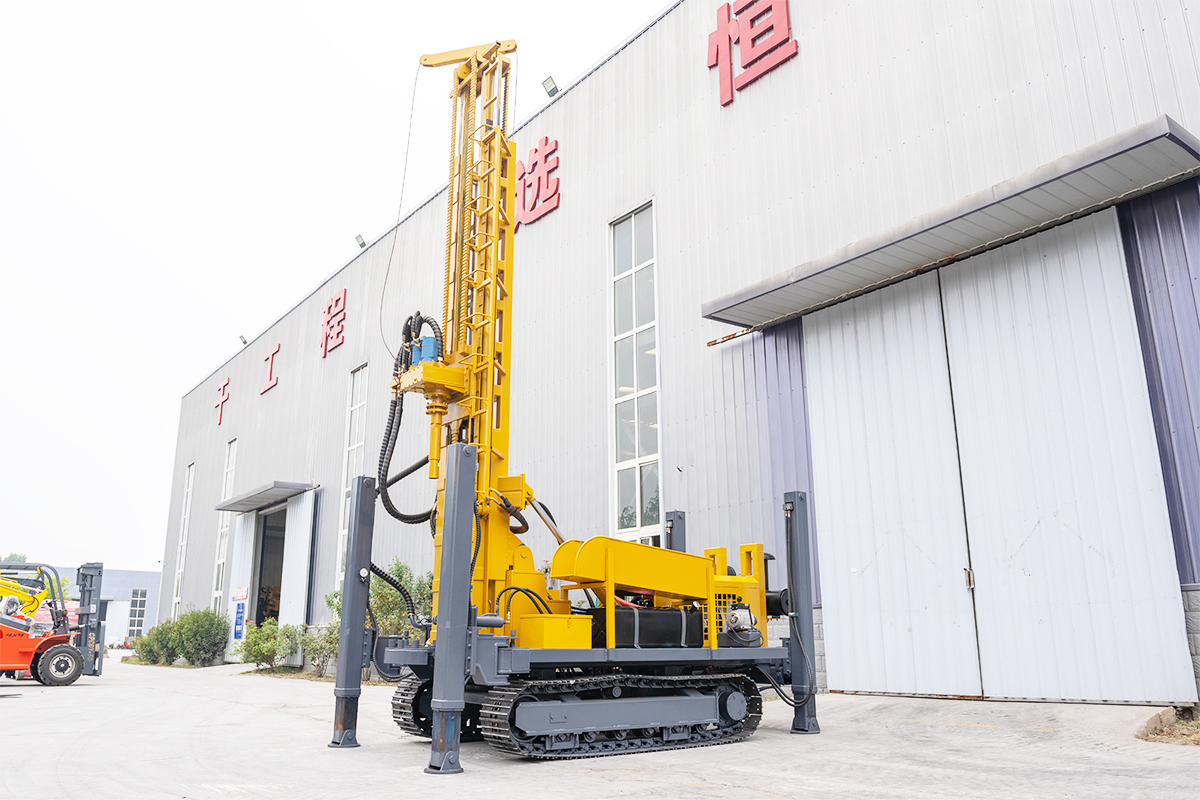

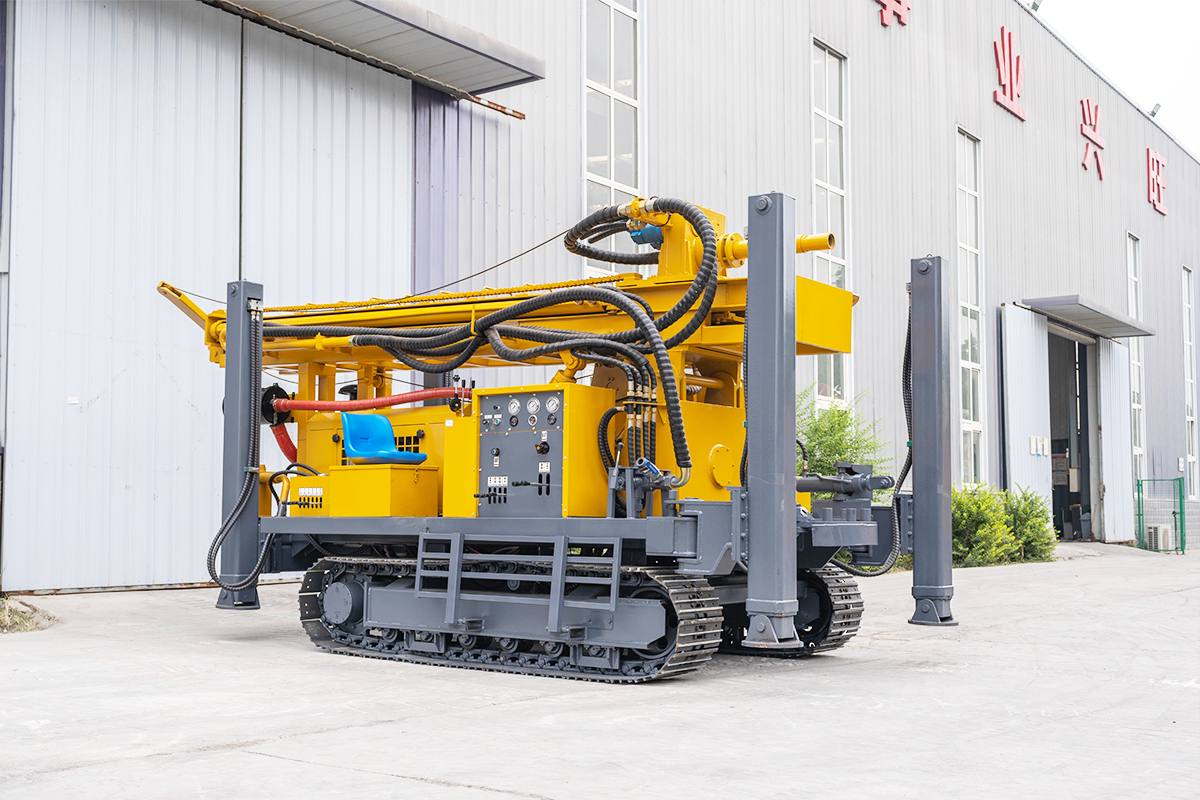

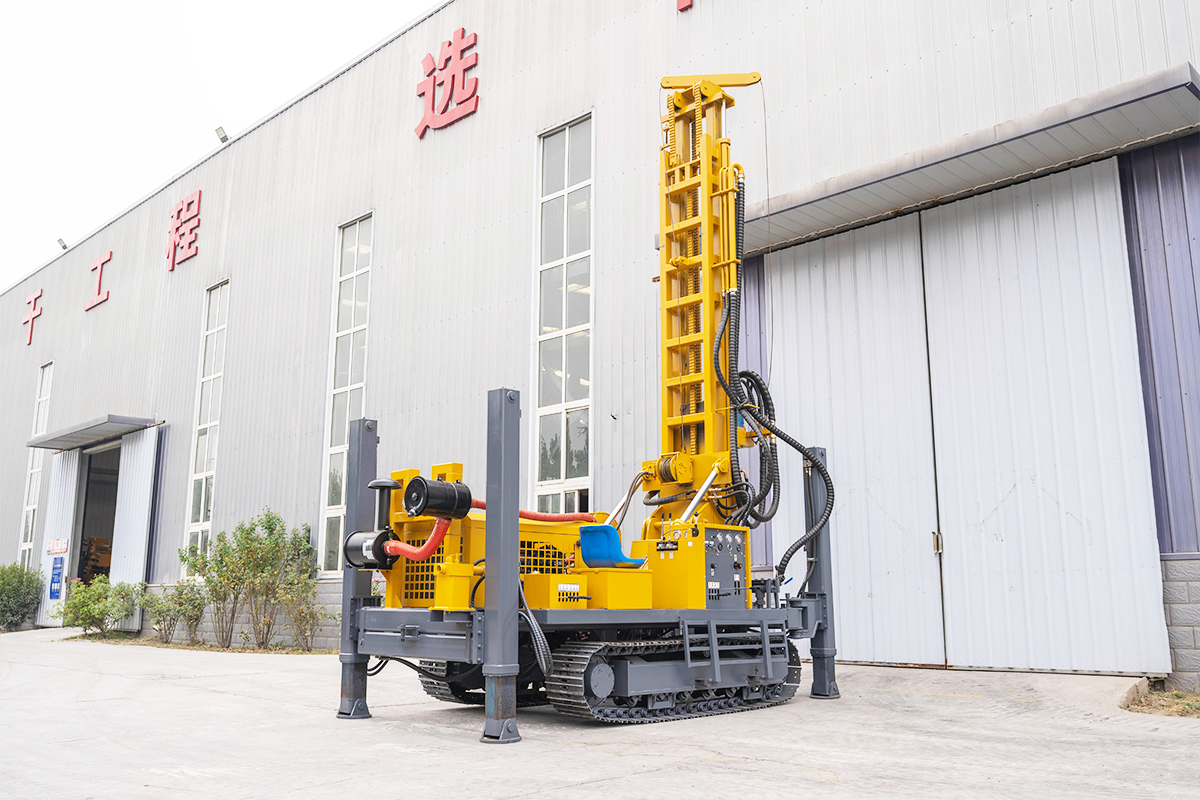

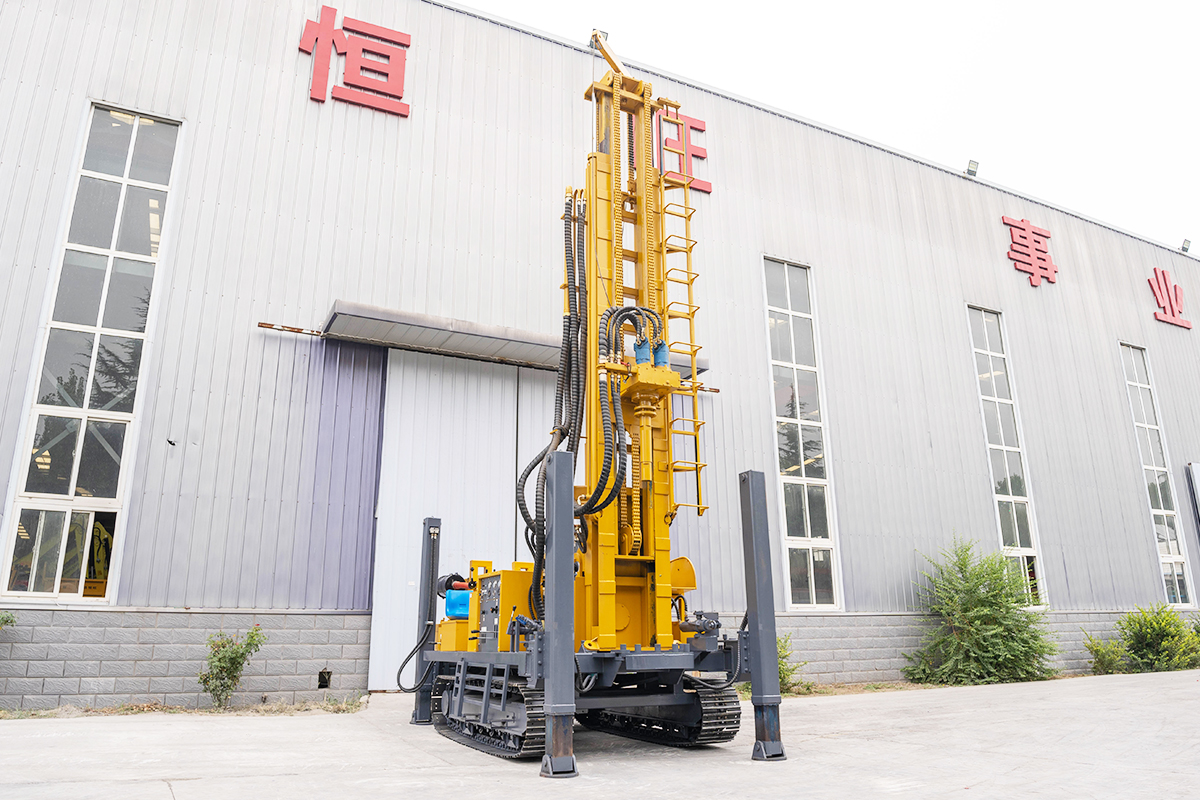

HQZ-400L Pneumatic Drill Rig
Training on Arrival
One-year warranty
Factory Direct
Basic Specifications:
Drilling depth: 400m
Drilling diameter: 130-325mm
Main motor power: 110Kw
Hengwang Group aims to provide you with complete engineering equipment solutions to reduce your costs and increase your profits.
Back
Main feature:
1.Pneumatic water well drilling rig with fast drilling speed and low fuel consumption per unit.
2.Crawler type chassis for improved off-road performance.
HQZ pneumatic water well drilling is a lightweight, efficient and multifunctional drilling equipment.It is suitable for industrial, civil drilling and geothermal drilling projects.
Submit the form to get the latest parameters and quotes.
| model | HQZ-400L | |
| tower | 3/6 | m |
| Chassis | Steel track | / |
| Drilling diameter | 130-325 | mm |
| Drilling depth | 400 | m |
| One-time advancement length | 3.6/6.6 | m |
| Walking speed | 2.5 | km/h |
| Maximum gradeability | 30 | / |
| Engine brand | Yuchai | / |
| Engine power | 92/110 | kw |
| working pressure | 1.7-3.5 | mpa |
| Air consumption | 17-35 | m³/min |
| Drill pipe diameter | 102/108/114 | mm |
| Drill pipe length | 3.0/6.0 | m |
| Lifting power | 25 | T |
| Swing speed | 45-115 | rpm |
| Rotating torque | 7000-9000 | N.m |
| Dimensions | 5400*2200*2870 | mm |
| weight | 7/9 | T |
Due to the continuous update and progress of technology, technical parameters and configurations are subject to actual delivery.
Submit the form to get the latest parameters and quotes
All products are guaranteed for 12 months!
