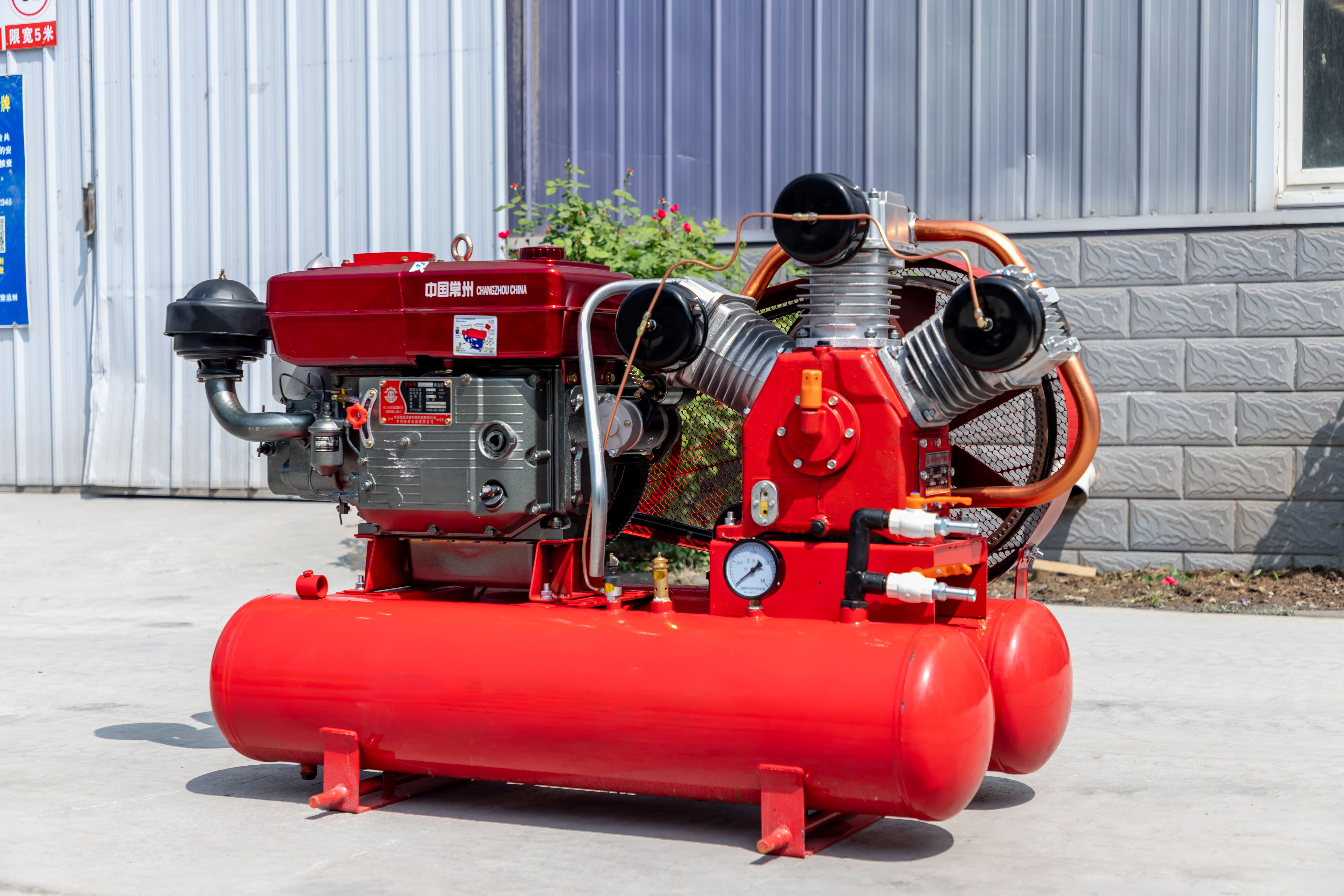

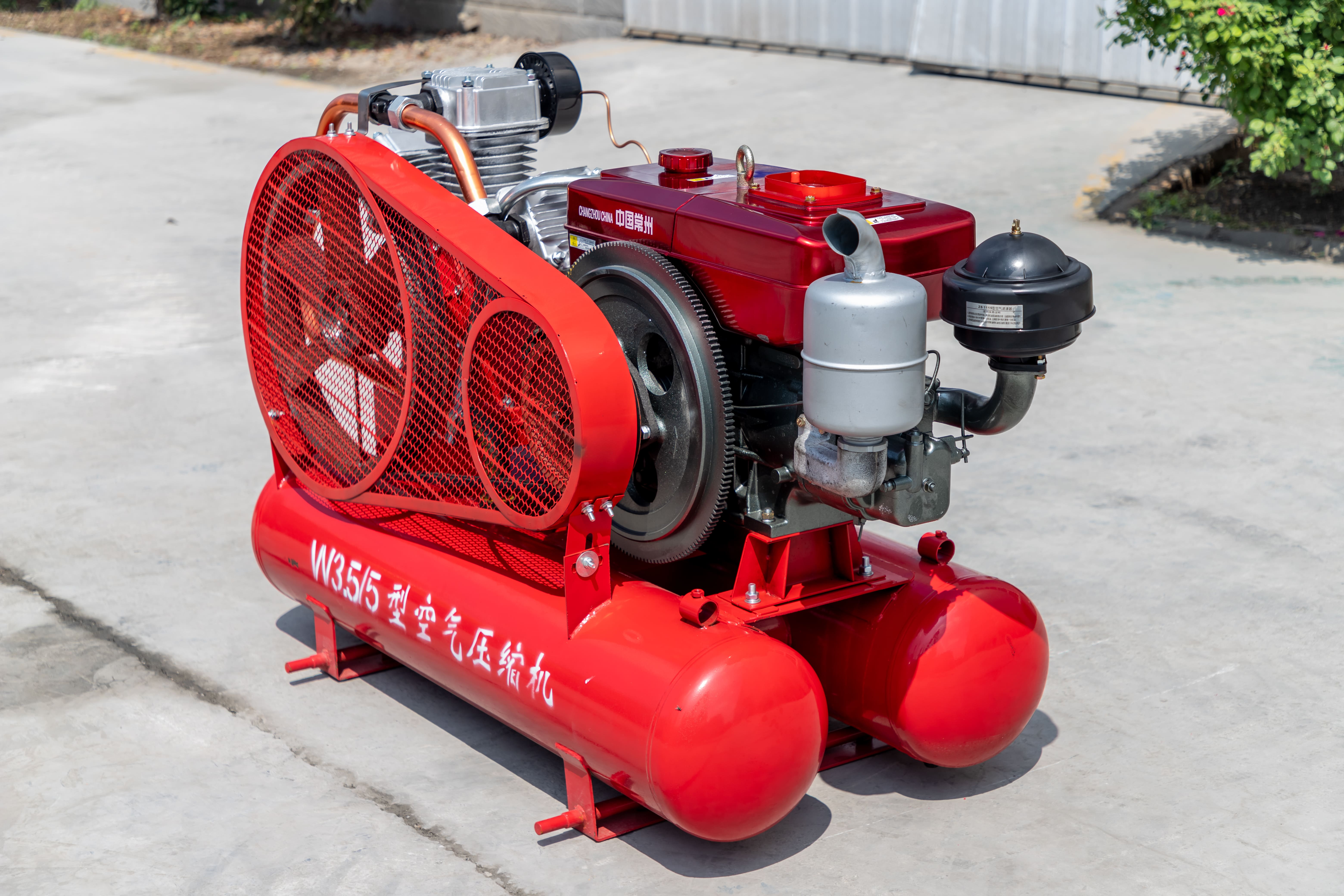

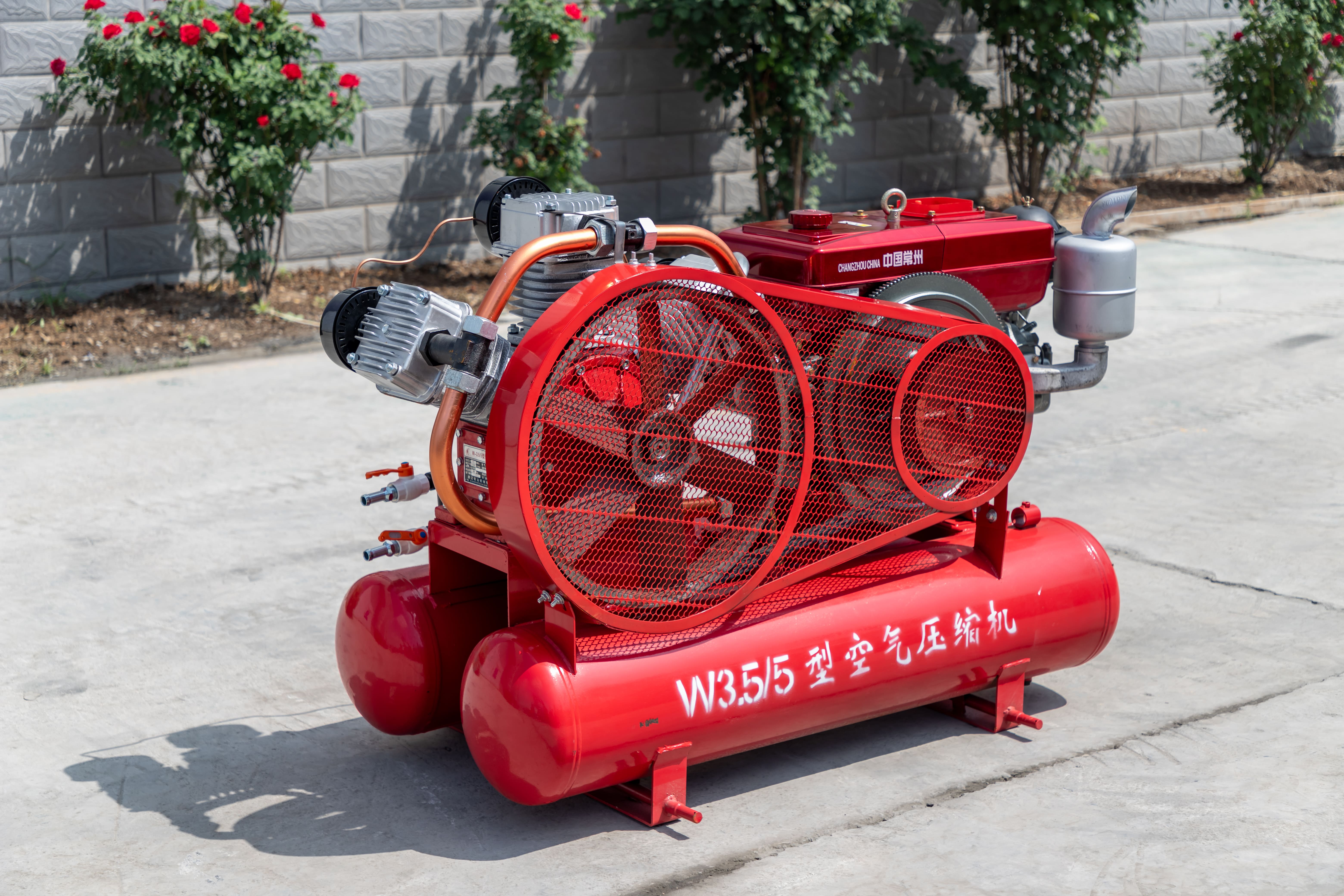

HW-3.5/5 Air Compressor
Training on Arrival
One-year warranty
Factory Direct
Basic Specifications:
Exhaust volume：3.5 m3/min
Exhaust pressure: 0.5Mpa

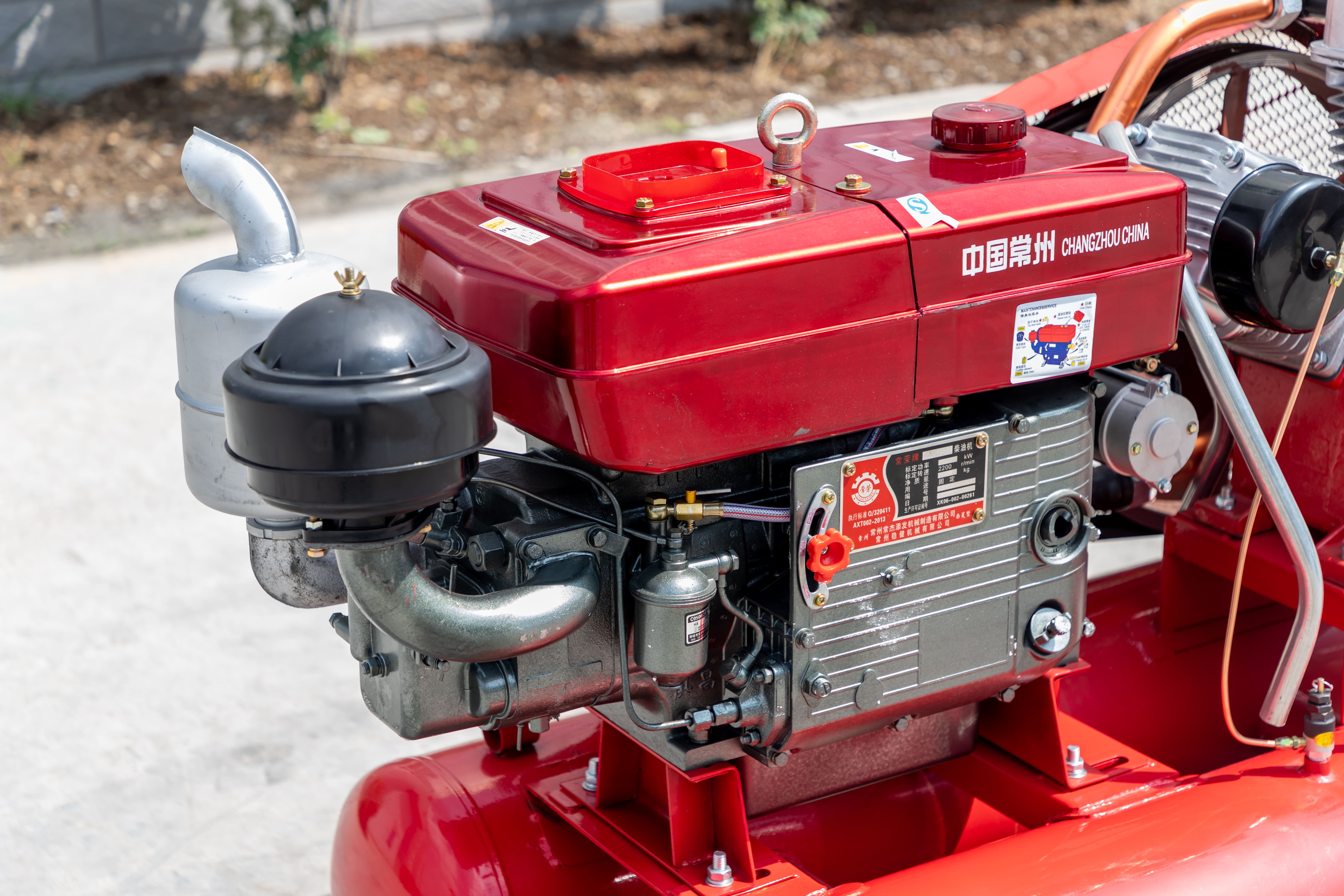

Drive mode：Diesel engine driven
Hengwang Group aims to provide you with complete engineering equipment solutions to reduce your costs and increase your profits.
Back| Model | Capacity (m3/min) | Exhaust pressure (Mpa) | Model of engine | Weight (Kg) | Dimensions (mm) |
| HW5/8 | 5 | 0.8 | YNE143RA/4DW91-56G2 | 1400/1300 | 2050×1000×1250 |
| HW10/8 | 10 | 0.8 | YCD4T22T-105A | 1700 | 1900×1306×1552 |
| HW13/8 | 13 | 0.8 | YC4DK120-T301 | 1750 | 2441×1806×2059 |
| HW15/15-1 | 15 | 1.5 | QSB5.9-C190-31 | 2500 | 3050×2182×2500 |
| HW15/15-2 | 15 | 1.5 | 6DF1-20GAG2 | 2450 | 3080×1650×2000 |
| HW15/15-3 | 31 | 1.5 | YC6J190-H300 | 2600 | 3250×1610×2470 |
| HW60 18/18 | 18 | 1.8 | QSB5.9-C220-30 | 2400 | 2900×1605×1797 |
| HW19/20 | 19 | 2.0 | 6CTA8.3-C260 | 3200 | 2920×1780×2622 |
| HW24/22 | 24 | 2.2 | YC6L310-H300 | 3800 | 3200×1800×2285 |
| HW29/23-1 | 29 | 2.3 | CA6DL2-35G31-YM10 | 3600 | 3100×1900×1950 |
| HW29/23-2 | 29 | 2.3 | 6DL2-35KG31-YM10 | 3900 | 3500×1980×2260 |
| HW29/24 | 29 | 2.4 | YC6MK400-H300 | 4200 | 3776×2000×2032 |
| HW31/25-1 | 31 | 2.5 | CA6DM2-42GAG2 | 4200 | 3500×2000×2150 |
| HW31/25-2 | 31 | 2.5 | CA6DM2-42GAG31-YM10 | 4200 | 3500×1980×2260 |
Enhanced Lubrication Efficiency:
Experience superior performance with our advanced "Convex-Convex" engagement design. This innovative feature facilitates the formation of a hydrodynamic lubrication film, reducing horizontal leakage in the contact zone. This not only enhances the efficiency of the compressor but also improves rotor processing and testing properties.
Quiet, Low-Vibration Operation:
Embrace the "large rotor, large bearing, and low-speed" design philosophy, setting our compressors apart from the rest. With a 30-50% lower revolving speed compared to other br
All products are guaranteed for 12 months!
