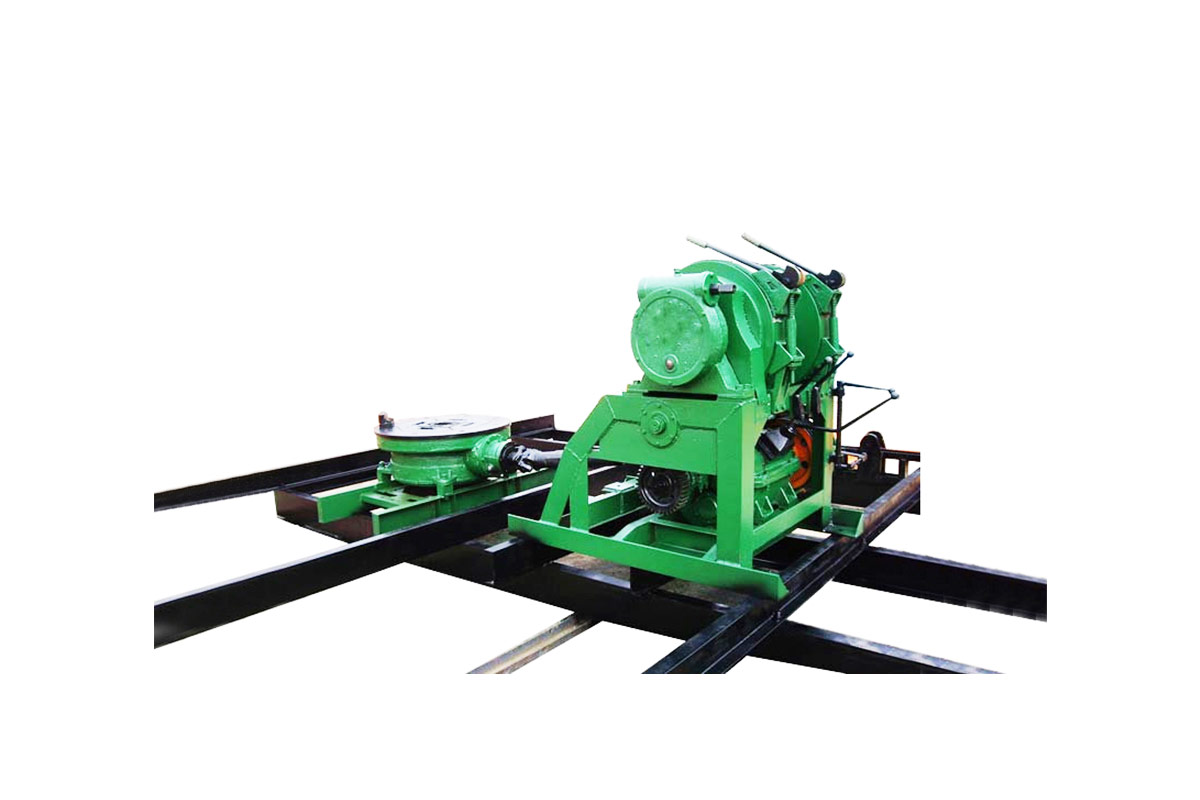

SPJ300 Mill Drilling Rig
Training on Arrival
One-year warranty
Factory Direct
Basic Specifications:
Drill Diameter: 500-1500mm
Drill Depth: 300m
Drill Mast Height: 8.6m
Hengwang Group aims to provide you with complete engineering equipment solutions to reduce your costs and increase your profits.
BackSPJ (t/c) series water well drilling rigs are the products of our company's early production for water drilling and other hydraulic engineering.
At present, the products have been developed into drilling depths of 300 meters, 400 meters, and 600 meters, and can be formed in bulk according to user needs or truck-mounted multi-form series of well drilling rigs.
The rig adopts the rotary type, which is mainly suitable for hydrogeological exploration and other engineering holes.
The rig main unit, mud pump, diesel engine, etc. are all installed on a special semi-trailer chassis, which is convenient and quick to move.
| Model | SPJ-300 |
| Drill Diameter (mm) | Φ500mm-1500mm |
| Drill Depth | 300m |
| Maximum output torque (kn/m) | 18KN/m |
| Drive pipe (mm) | 08mm×108mm×4000mm |
| Drill pipe (mm) | φ89mm×4200mm, φ127×φ108×4200mm |
| main winch | 30KN |
| auxiliary winch | 20KN |
All products are guaranteed for 12 months!
